高耐久ダンパー(有限角タイプ)





HIGH-DURABILITY DAMPER (Partial Rotation Angle)

High-durability

TOK’s high-durability damper is six times stronger in comparison with our standard damper.
It can be used 300,000 times.

Maintenance is unnecessary.

It is useful for a variety of applications, including:
Aircraft doors / Automotive console-box lids / Toilet seats / Lids for kitchen hoods / Piano lids

It is useful for a variety of applications, including

It can be used in situations with strict conditions such as aircraft and places where industrial equipment is used.

Adaptability for temperature change (Hydraulic-accumulator)

The hydraulic-accumulator is the mechanism that can absorb silicon-oil within the damper, as the oil expands and shrinks due to temperature fluctuations. With this mechanism the damper can be used in temperatures between -5 ℃ and 70 ℃.

Adaptability for temperature change (Hydraulic-accumulator)

Adjustable closing speed for various loads

Even if the weight of the object varies, closing speed can be made uniform by adjusting the torque of the damper automatically.
Adjustable closing speed for various loads

It can be adjusted closing speed for various loads.

It can be adjusted closing speed for various loads.

It can be adjusted closing speed for various loads.


速度依存型ロータリーダンパー(無限角タイプ)






ACCELERATION DETECTOR DAMPER (Continuous Rotation Angle)

It has 5 times higher torque in comparison with TOK’s standard damper.

Torque is adjusted according to the movement speed of the object

Torque is adjusted according to the movement speed of the object

It produces stable movement regardless of an objects size/load

Application examples: Sliding doors in hospitals

 A sliding door slams when closed using strong force. On the contrary, by using weak force the door is stopped before completely closing.
However, the Acceleration Detector Damper can solve such problems.
The closing speed can automatically be made uniform, regardless of the force used to close the sliding doors.

Adjusting torque

 Torque is adjustable to 15 different levels using a turn-dial.

速度依存型ロータリーダンパー
速度依存型ロータリーダンパー

Based on changes in the
contact area of a
“Main-rotor” and an
“Adjustment rotor”, the
torque fluctuates according
to the torque of the load.

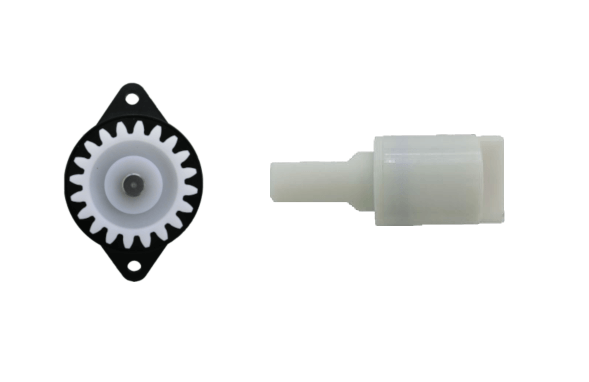

Application examples: Sliding doors / Shutters

Rack & Pinion gear method
*Damper without the gear is also available

  • Rack & Pinion gear method


SELF-STANDING DAMPER (Partial Rotation Damper)

The rotation of the damper is limited, so that a lid can be held open at
an angle without any additional component parts. It can be designed
compactly and at the same dimensions as all existing TOK dampers.

自立機構ダンパー(有限角タイプ)

Application examples

Toilet seat / Luxury box
