Applications

Motion Control with TOK products

close
Rotary Damper_Sliding Screen Door

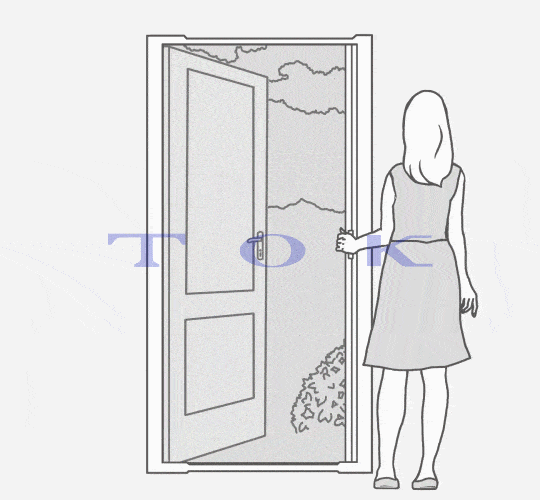

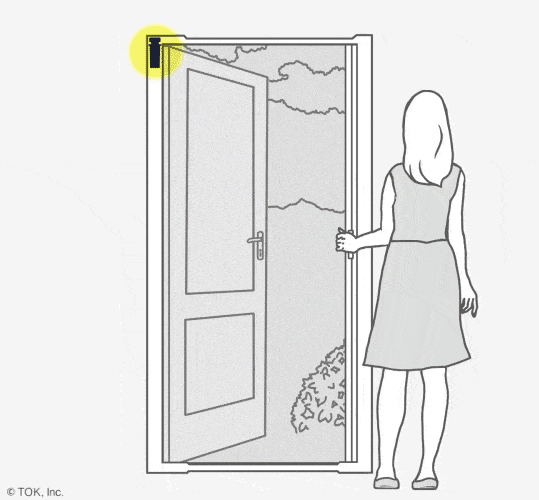

Sliding Screen Door


How to install TOK products

Features
Rotary dampers control the retraction speed of the screen door and reduce the impact.
➢ Soften the noise from impact
➢ Prevent slamming of fingers

Applications
Screen door | Barrier reel | Winding device | Coil winder | Projector screen

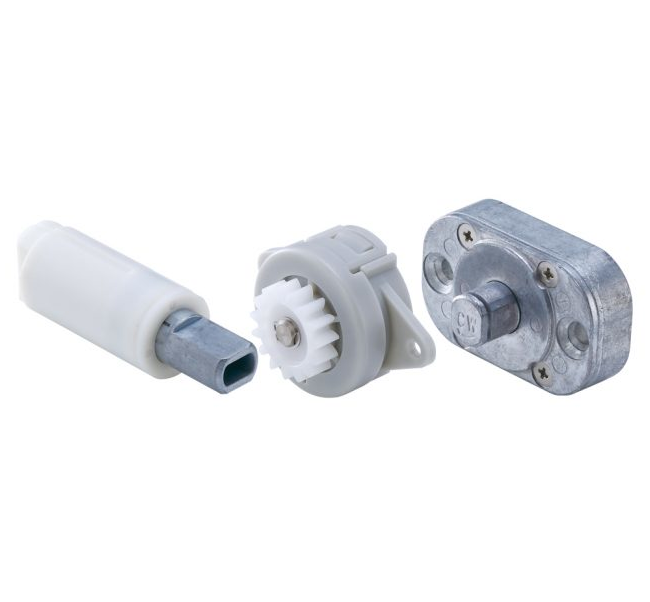

Product Family
Continuous Rotation Angle Rotary Dampers (TD88 | TD62 | TD58)

close

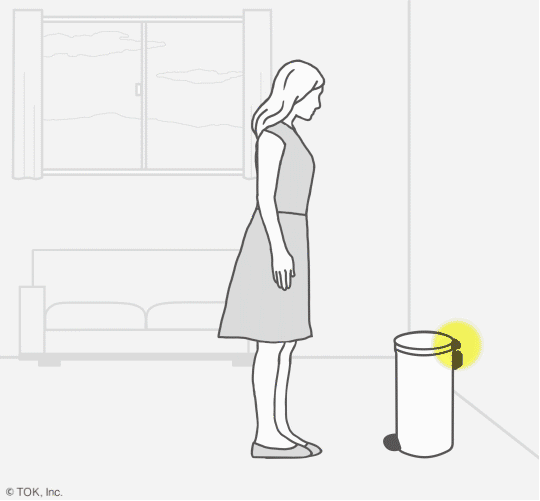

Rotary Damper_Trash Can Lid

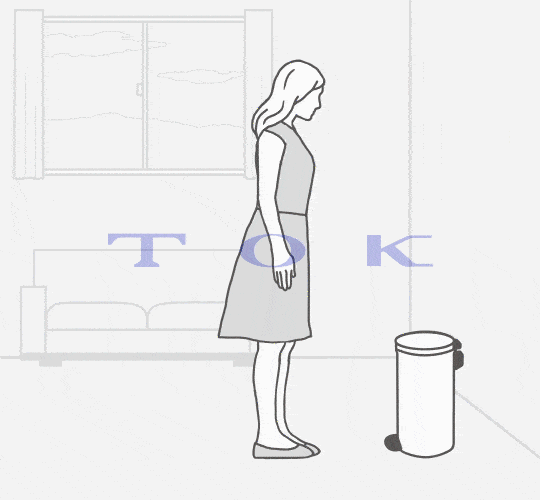

Garbage Can Lid


How to install TOK products

Features
Rotary dampers can be realized soft-closing by controlling speed when closing doors or lids.
➢ Protect from impact damage
➢ Soften the noise from impact
➢ Prevent slamming of fingers

Applications
Garbage can lid | Toilet seat and cover | Piano lid | Printer lid

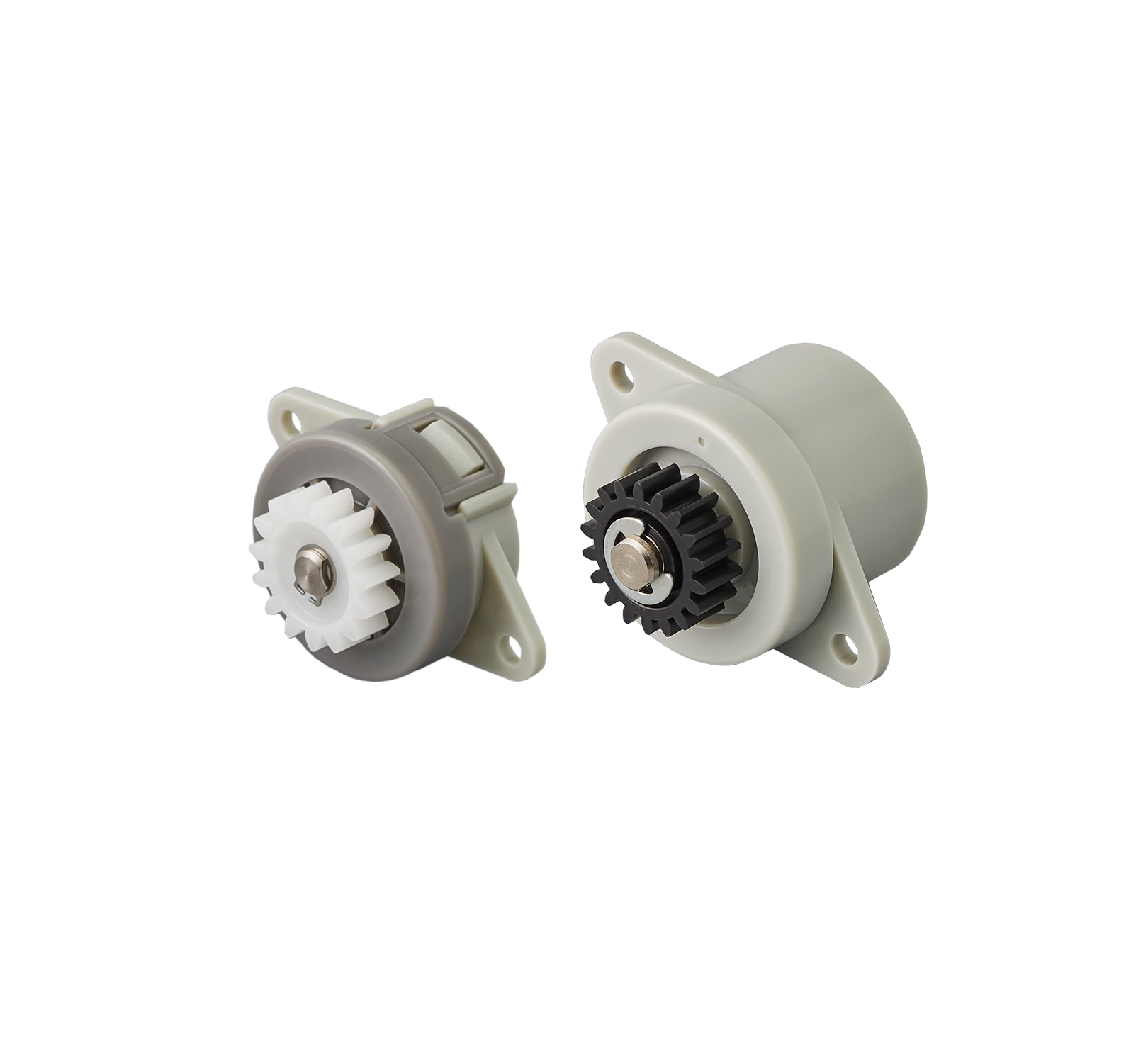

Product Family

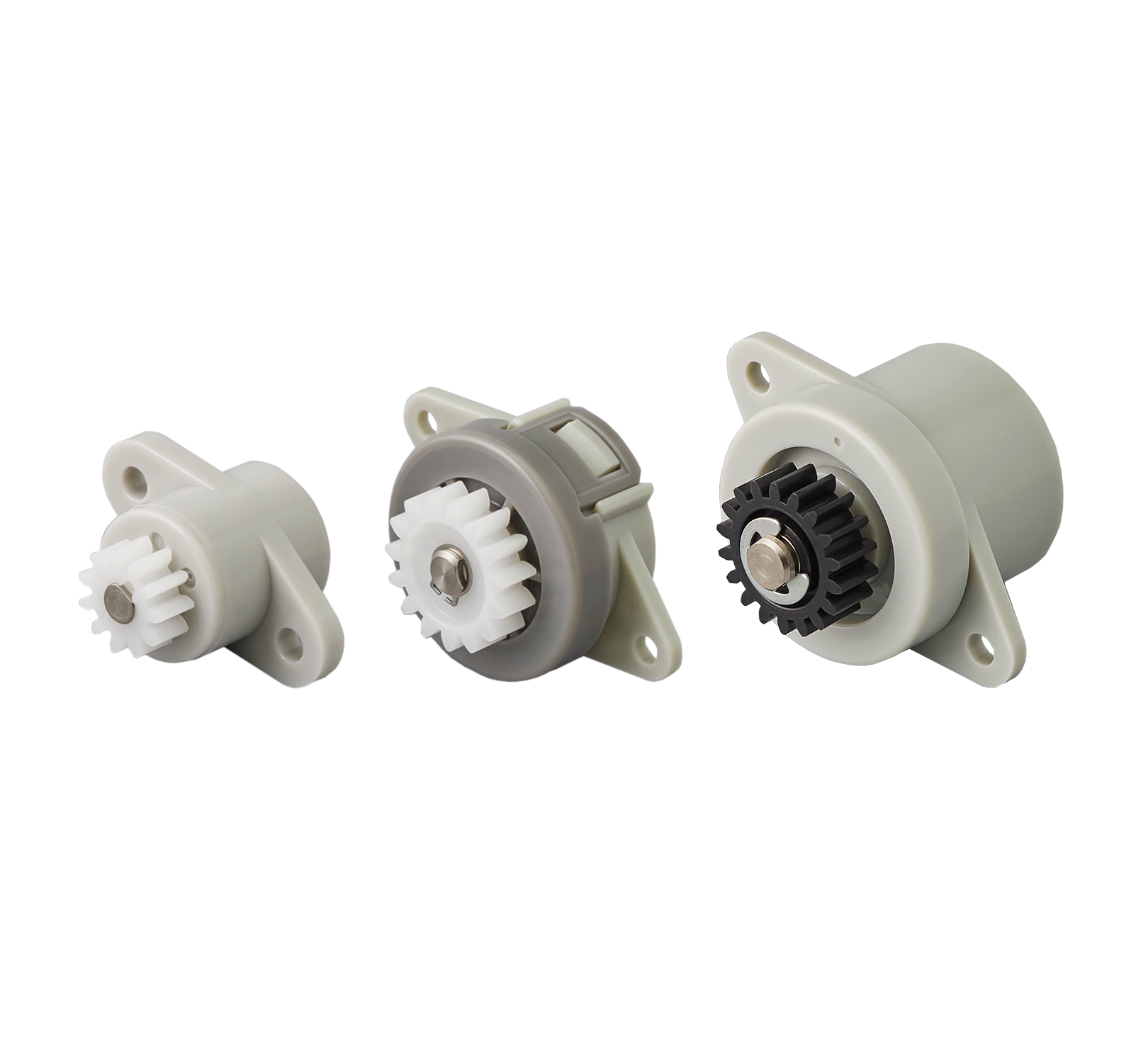

Partial Rotation Angle Rotary Dampers (TD73 | TD75 | TD38)

close
Rotary Damper_Console Box Lid

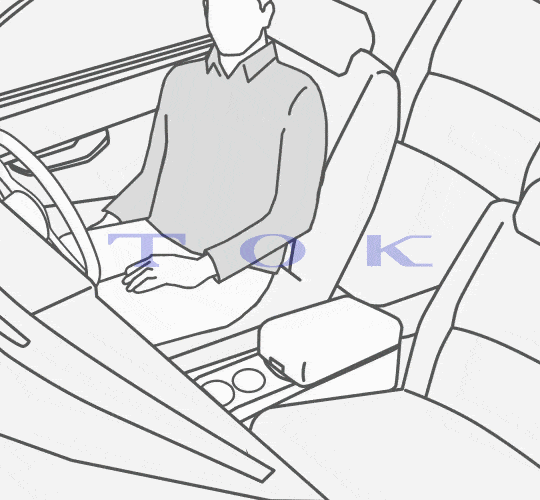

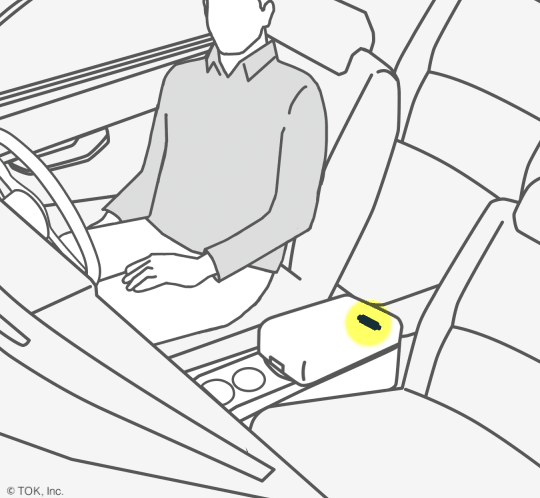

Console Box Lid


How to install TOK products

Features
Rotary dampers act as a brake by slowing the flip-up motion via spring force.
➢ Ensure safety

Applications
Automobile  console box | Wire management box for office desk |
| Rice cooker lid | Wall mounted folding rack

Product Family
All Types of Rotary Dampers

close
Rotary Damper_Blind Lifting

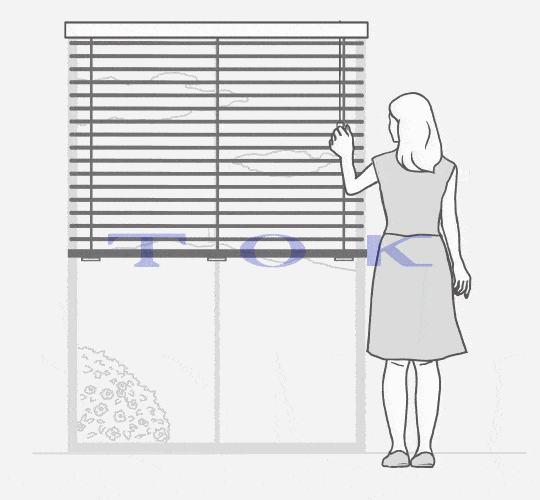

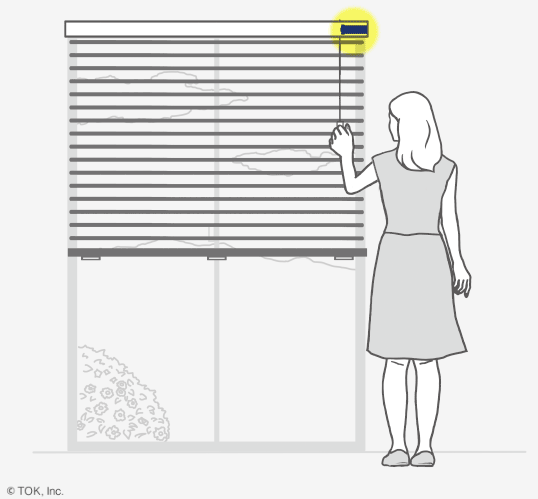

Blinds Lifting


How to install TOK products

Features
Slow movement can be achieved by opening/closing a door or lid at a constant speed.
➢ Protect from impact damage
➢ Soften the noise from impact
➢ Prevent slamming of fingers

Applications
Blinds and shades | Screen door

Product Family
Continuous Rotation Angle Rotary Dampers (TD62 | TD58)

close

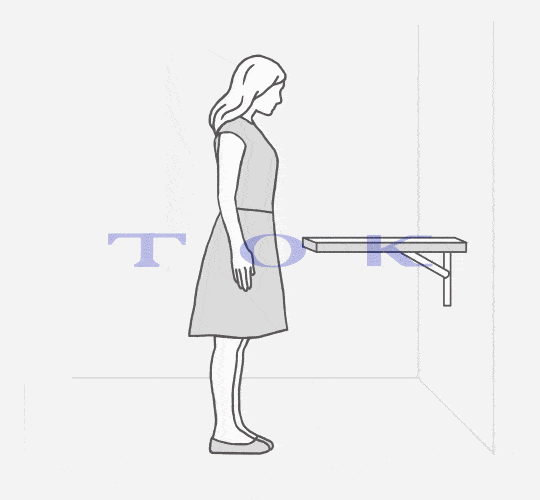

Rotary Damper_Folding Table

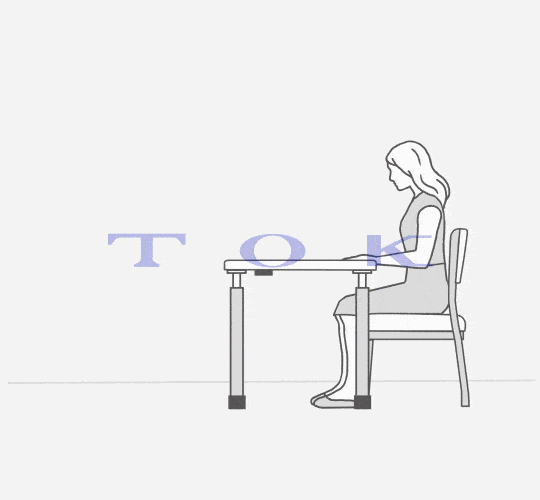

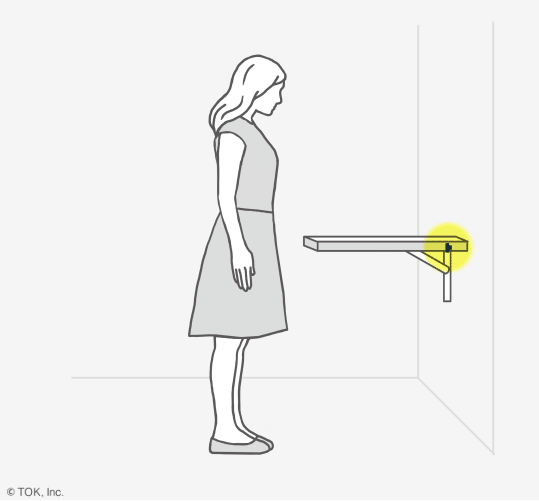

Folding Table


How to install TOK products

Features
To begin, rotary dampers can be set at a high torque in the area of movement,
and then the torque can gradually be reduced.
➢ Protect from impact damage
➢ Soften the noise from impact
➢ Prevent slamming of fingers

Applications
Glove compartment | Display case lid | Wall mounted folding table/seat

Product Family
Partial Rotation Angle Rotary Dampers (TD38 | TD75 | TD99)

close

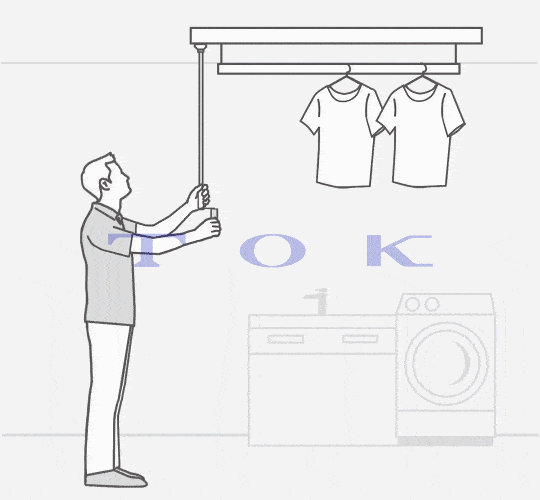

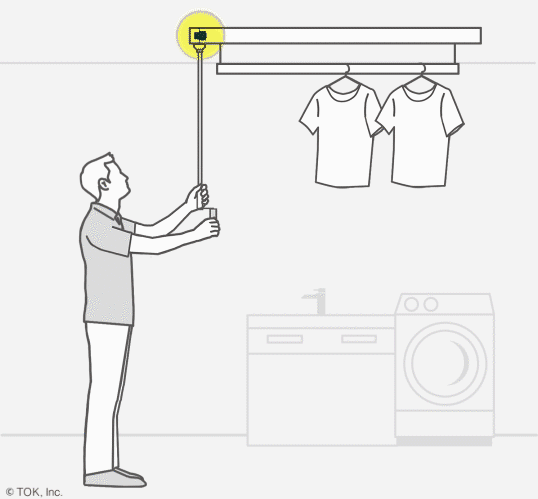

SR_Washing Pole Lifting

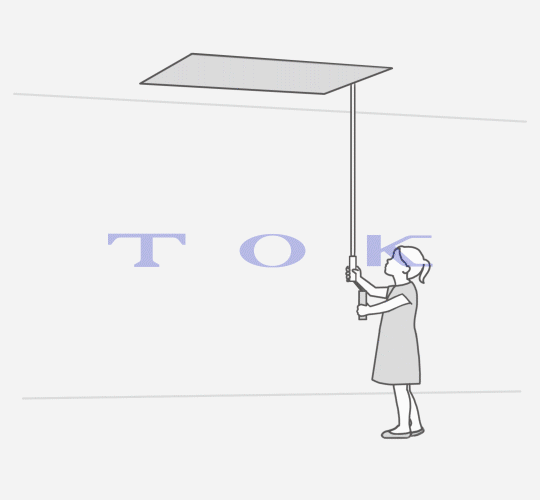

Laundry Pole Lifting


How to install TOK products

Features
Heavy objects can be easily lifted and lowered by hand,
and can be fixed at that position when input is stopped.
➢ Lift and lower heavy objects
➢ Fixable at any position
➢ Easy operation

Applications
Shutter | Height adjustable table | Laundry pole

Product Family

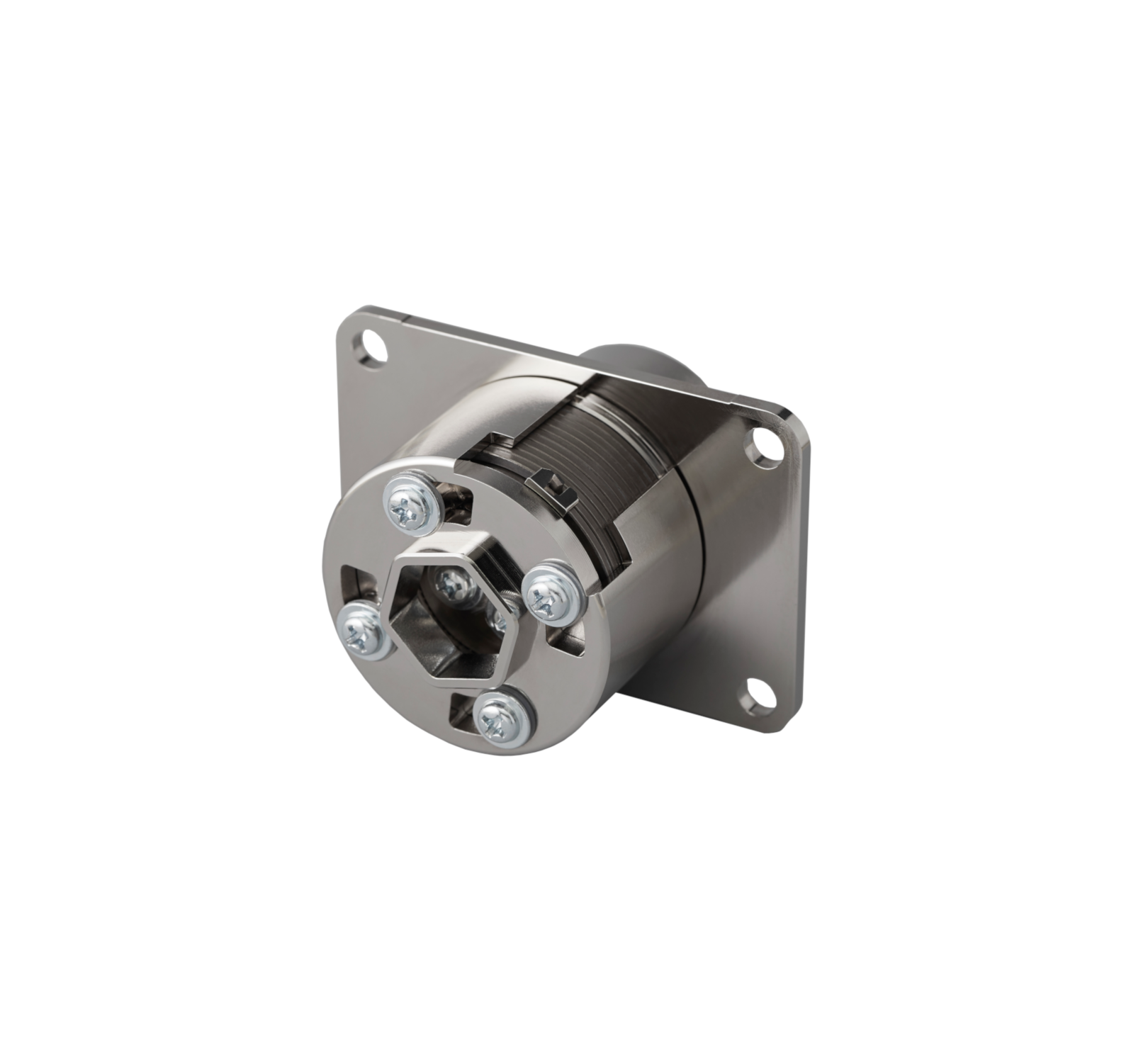

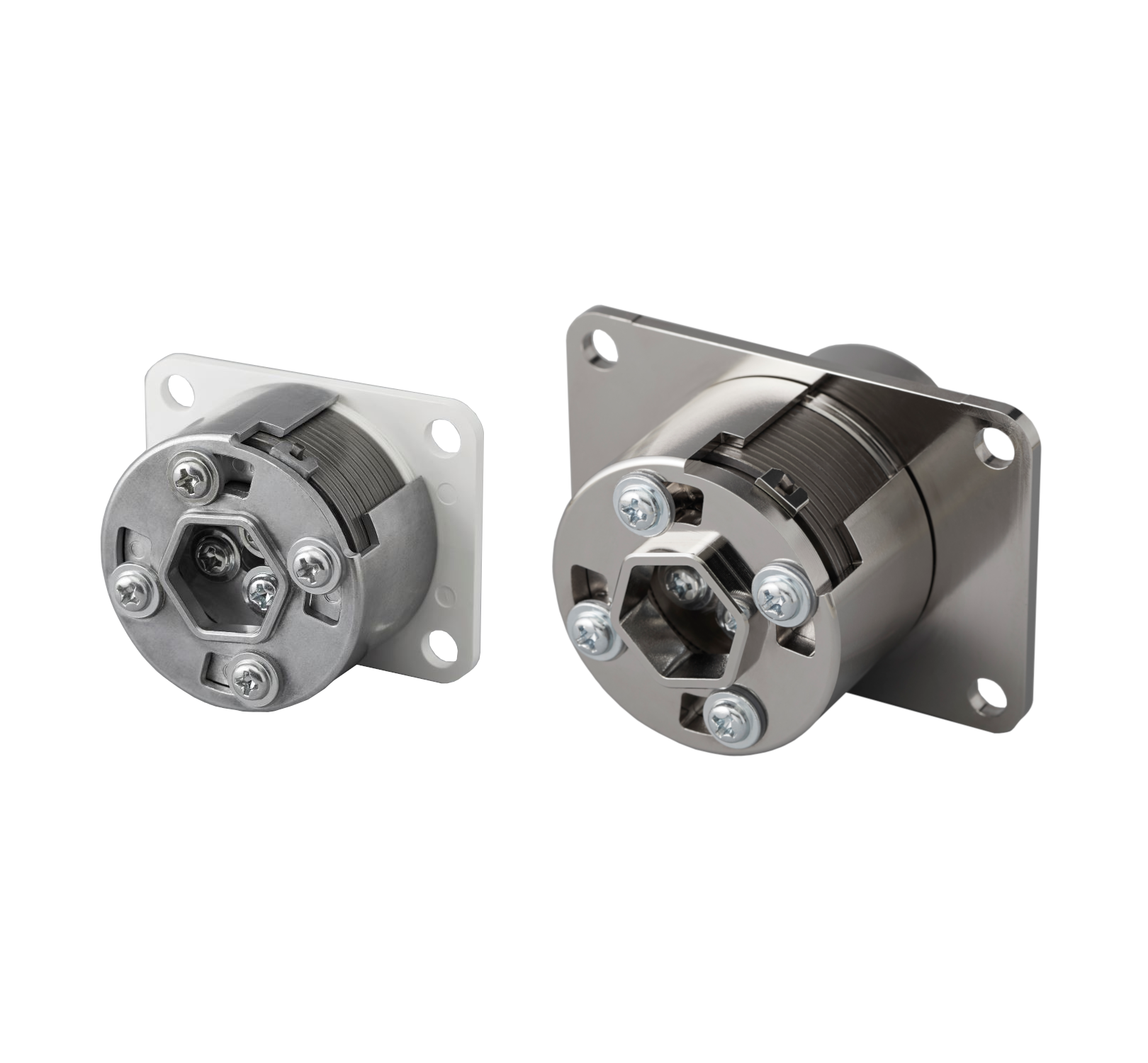

Uni-directional clutch (SR2 | SR12)

close
SR_Lifting Table

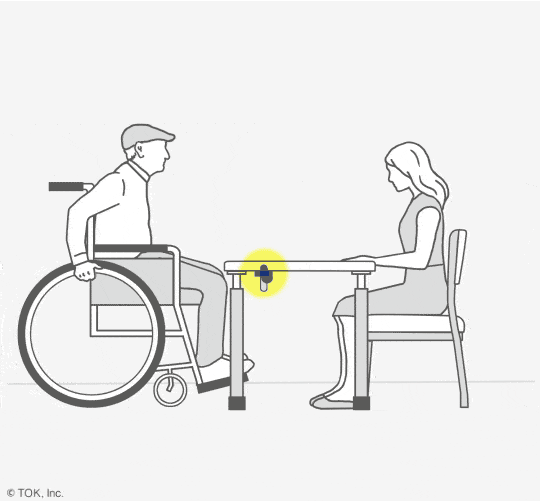

Height Adjustable Table


How to install TOK products

Features
Heavy objects can be easily lifted and lowered by hand,
and can be fixed atthat position when input is stopped.
➢ Lift and lower heavy objects
➢ Fixable at any position
➢ Easy operation

Applications
Shutter | Height adjustable table | Laundry pole | Work table

Product Family
Uni-directional clutch (SR12)

close

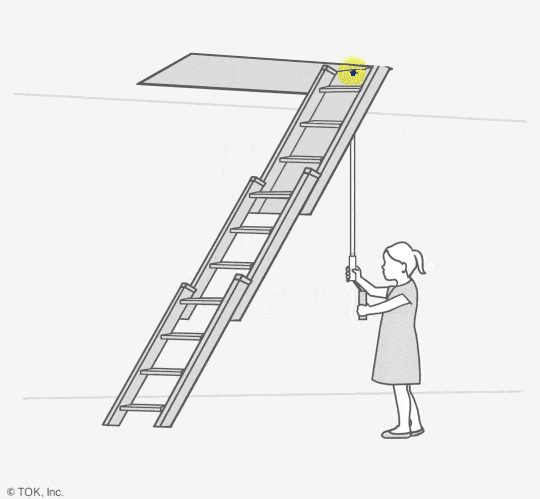

SR_Folding Attic Ladder

Folding Attic Ladder


How to install TOK products

Features
With the reverse input blocking function, you can easily lift and lower heavy objects by hand
operation, and when you stop motion, you can fix it at any position.
➢ Lift and lower heavy objects
➢ The position to fix can be determined at any position
➢ Easy operation

Applications
Shutter | Ceiling storage ladder | Height adjustable laundry pole | Work table | Loft ladder

Product Family
Uni-directional clutch (SR12)

close

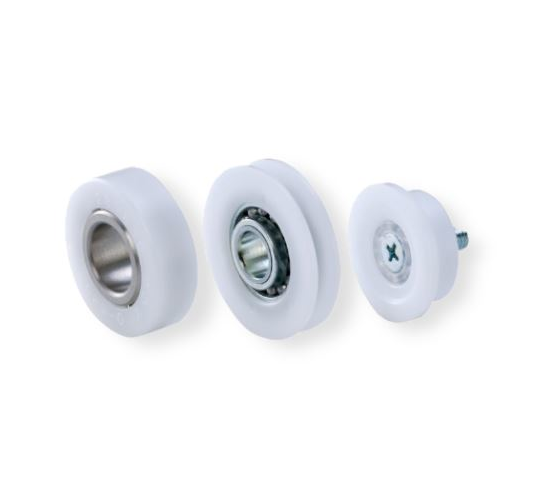

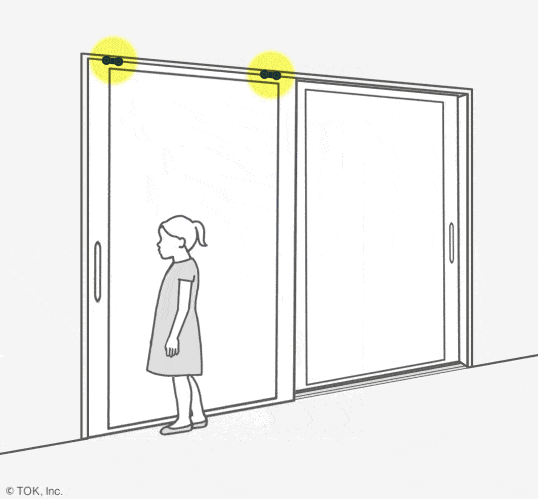

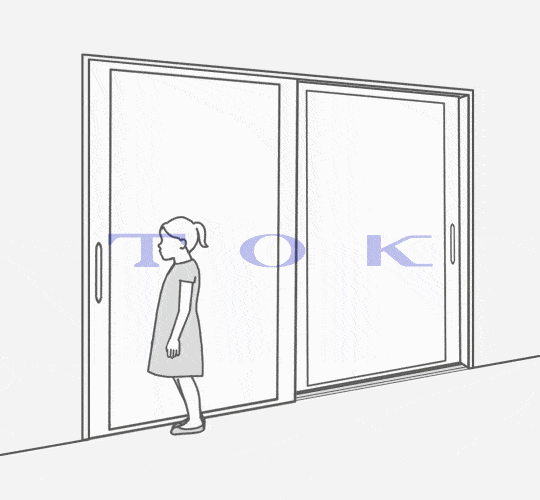

Ball Bearing_Slide Door

Slide Door


How to install TOK products

Features
Bearings allow objects to move with a light force and produce a smoooth motion.
➢ Easy operation
➢ Smooth motion
➢ Low noise
➢ High load capability

Applications
Slide door | Drawer | Refrigerator | Vending machine | Curtain rail

Product Family
All Types of Bearings

close

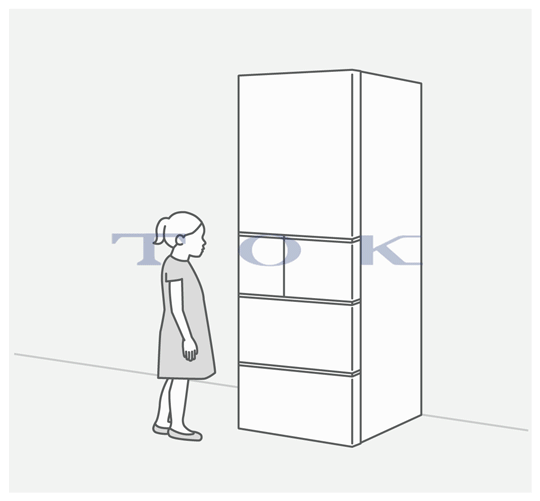

Refrigerator

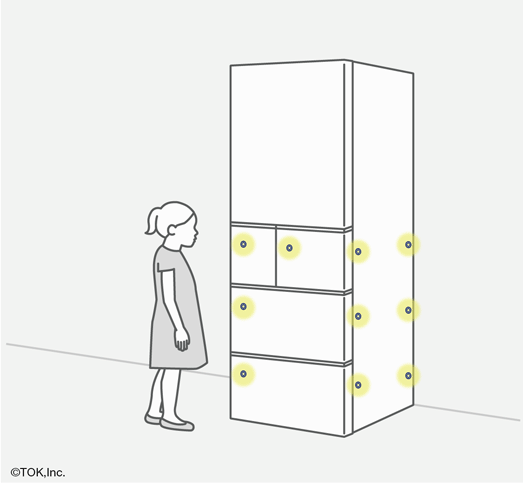

Refrigerator



Features
Bearings allow objects to move with a light force and produce a smoooth motion.
➢ Easy operation
➢ Smooth motion
➢ Low noise
➢ High load capability

Applications
Slide door | Drawer | Refrigerator | Vending machine | Curtain rail

Product Family
All Types of Bearings

close

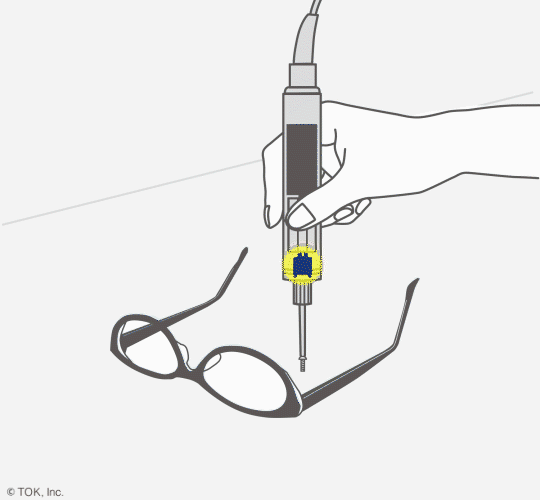

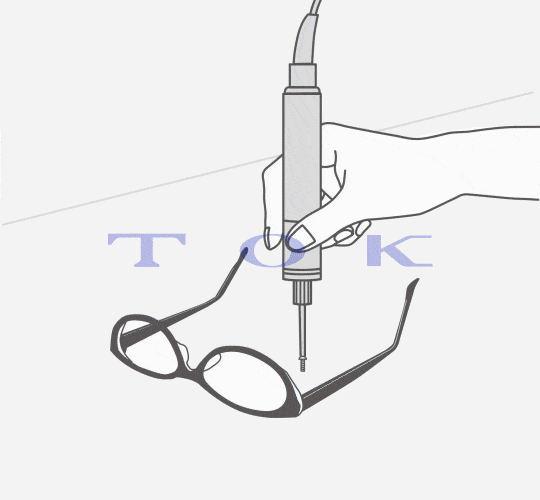

Torque Limiter_Electric Screwdriver

Electric Screwdriver


Overload protection mechanism


Features

Torque limiters can protect the motor and avoid damage to the object.
➢ Motor overload protection
➢ Ensure safety

Applications
Electric blinds | Electric screwdriver | Electric belt-winch

Product Family

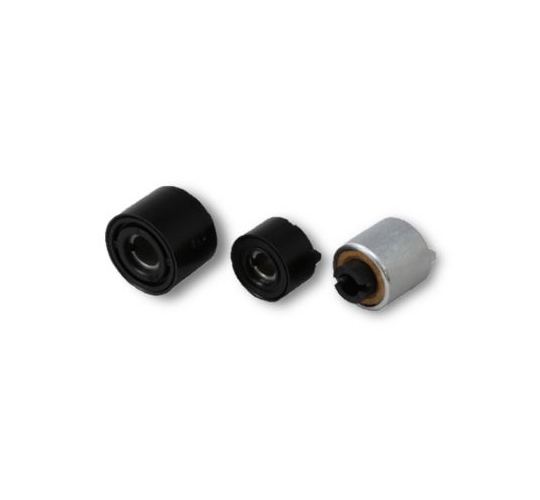

Torque Limiters (TLEU | TLD)

close

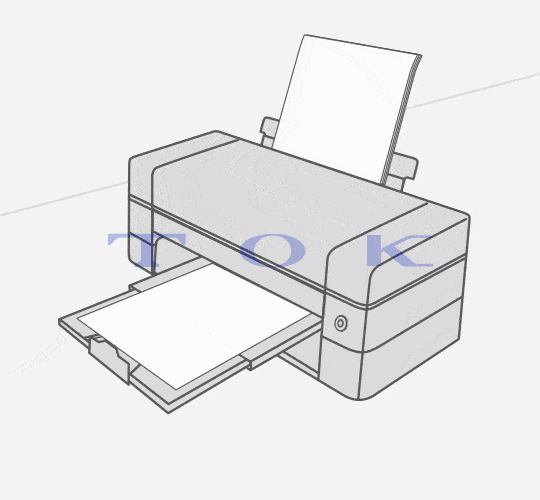

One-way Clutch & Torque Limiter_Paper Double Feed Prevention

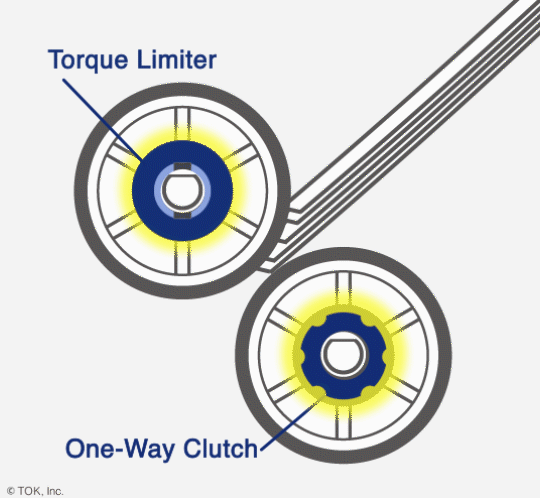

Paper Double Feed Prevention


Double feed prevention mechanism


Features

By using a torque limiter and a one-way clutch, you can prevent paper from reversing
and double feeding.
➢ Prevent paper reversal
➢ Prevent product damage

Applications
ATM machine | Printer/copy machine | Fax machine

Product Family

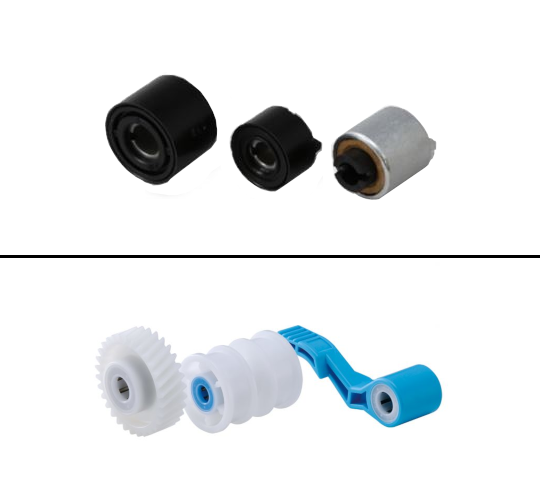

All Types of Torque Limiters | One-way Clutches
