Torque Limiters

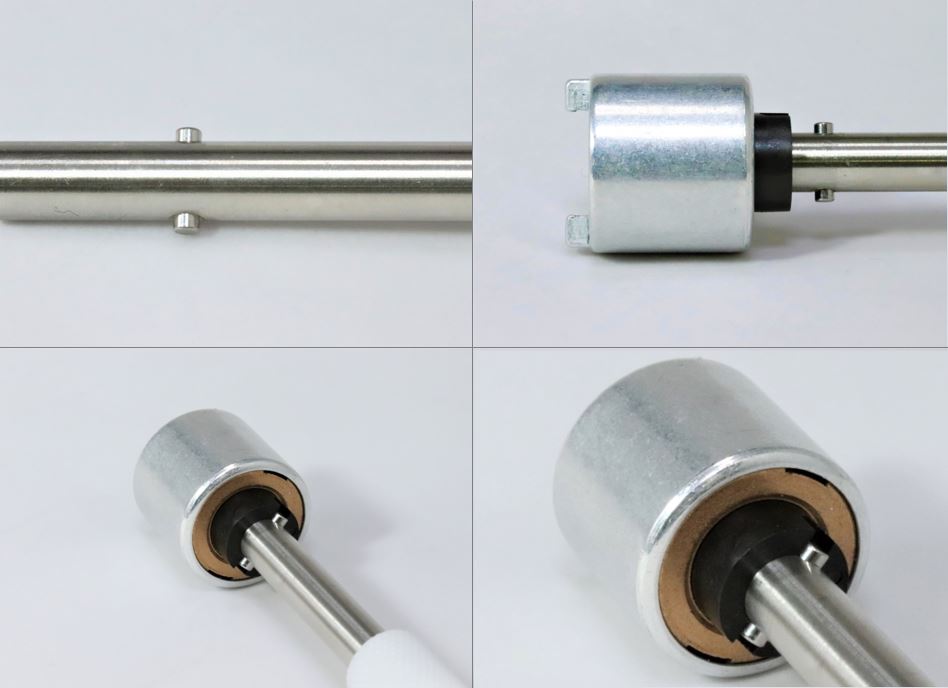

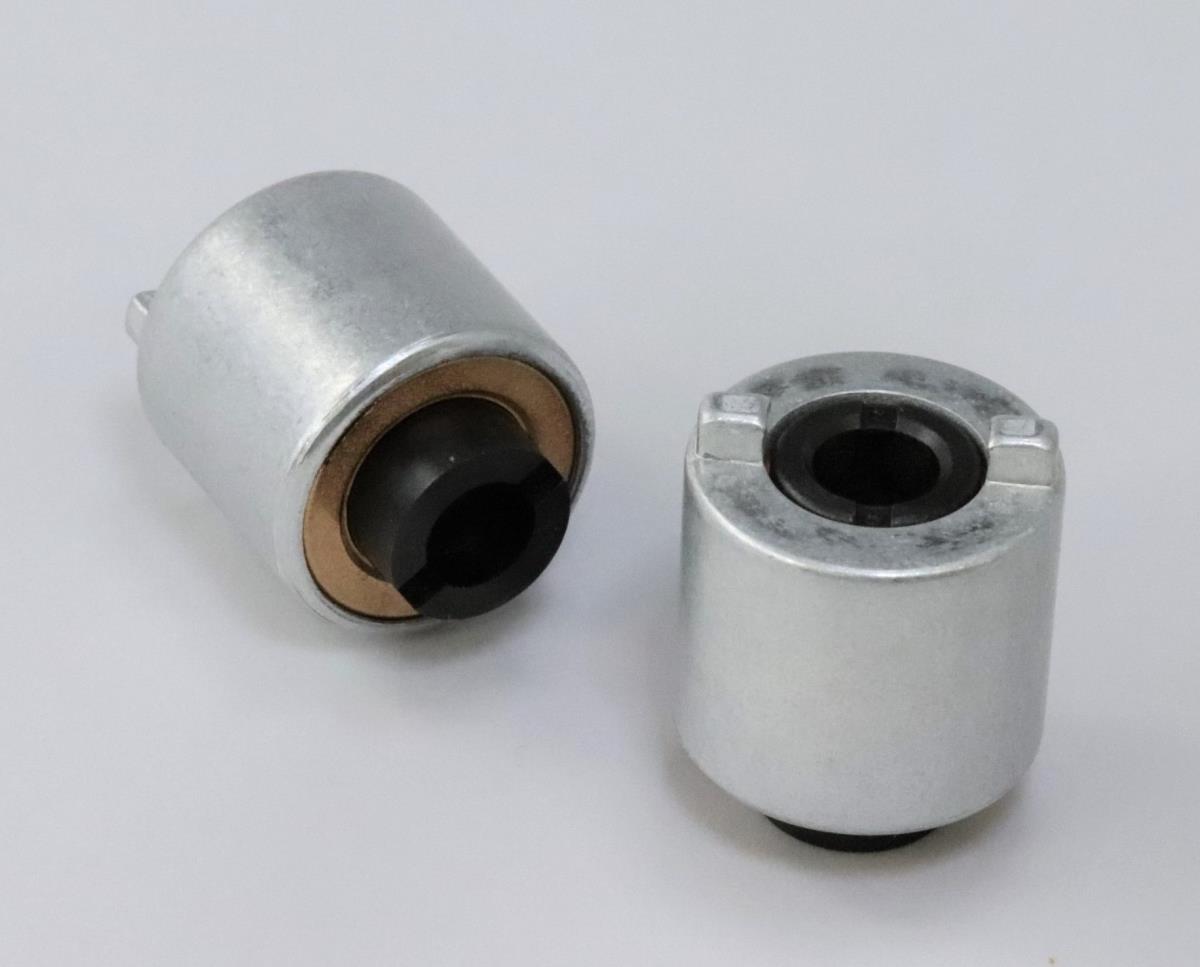

TLEU series
Features
･ Applicable to low torque
･ High rotation is also available
･ Long life
Specifications
･ Allowable speed: 2000 min-1
･ Minimum torque: 0.005 N･m
･ Maximum torque: 0.04 N･m
･ Outer diameter: φ18mm
･ Inner diameter: φ6mm
･ Durability: 10,000,000 cycles
Benefits
➢ Reducing torque ripple due to transmission
➢ Reducing torque fluctuations due to changes in temperature and humidity
➢ Good responsiveness when switching the rotation direction
➢ Long operating life
➢ Torque is stable even if speed changes
Applications
Card transport | OCR (High speed scanner) | Cash machine | Thermal printer | Measuring equipment

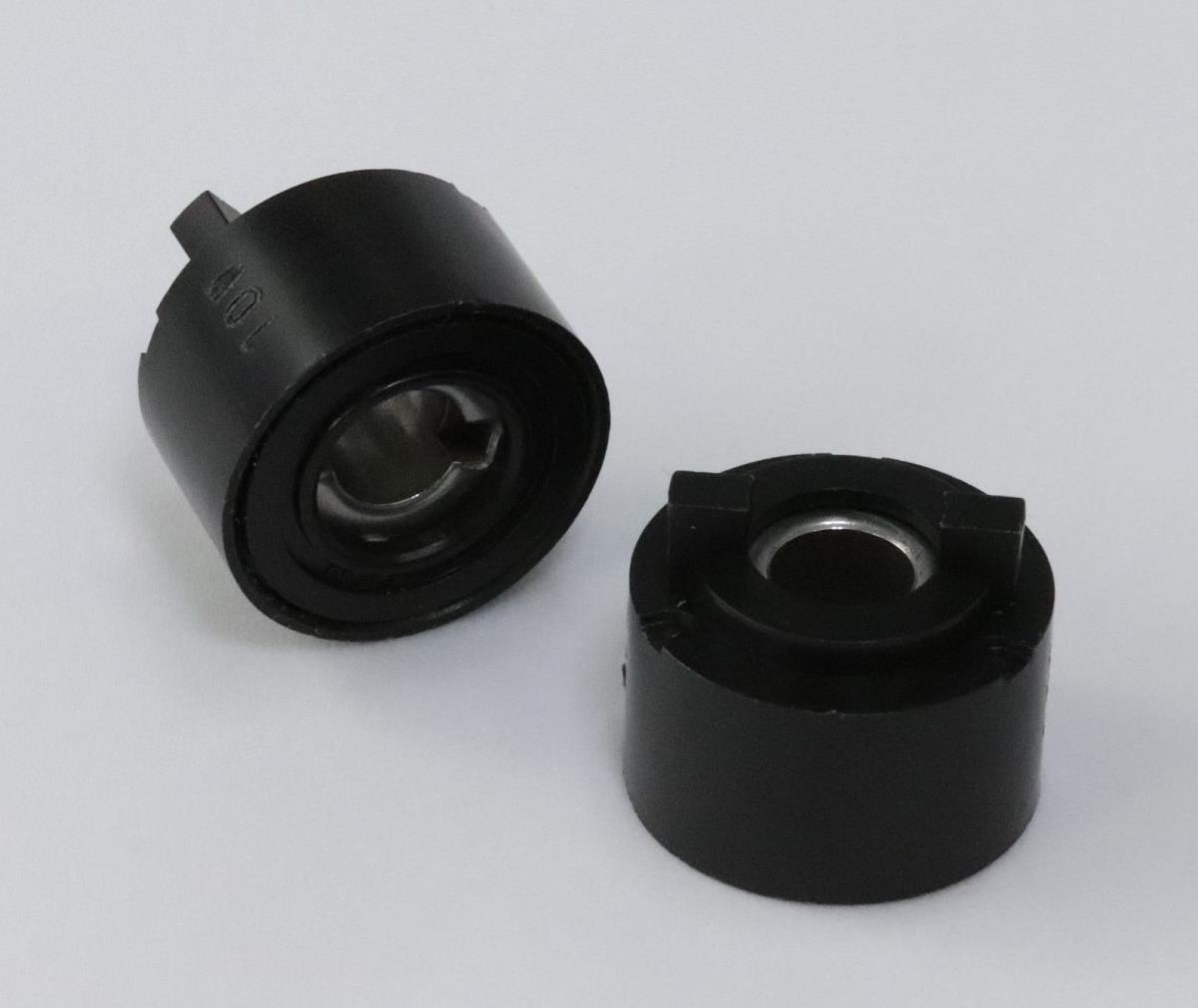

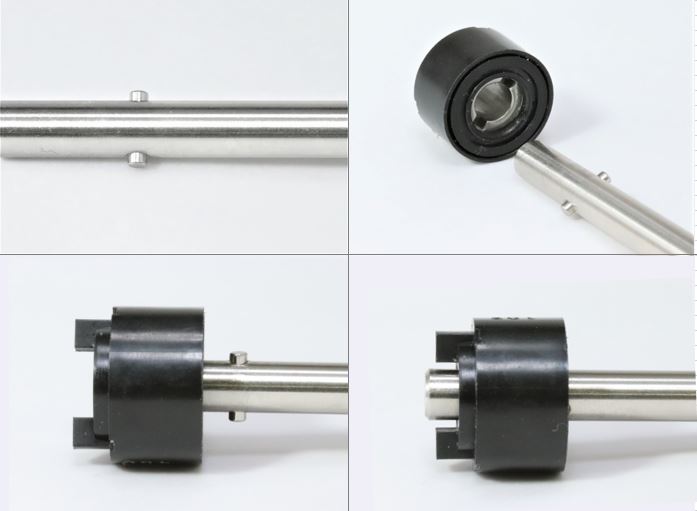

TLD series
Features
･ Wide torque range
･ φ6 and φ8 shafts are available
Specifications
･ Allowable speed: Type①400 min-1 | Type②50 min-1
･ Minimum torque: 0.20 N･m
･ Maximum torque: 0.40 N･m
･ Outer diameter: Type①φ18mm | Type②φ22mm
･ Inner diameter: Type①φ6mm | Type②φ 8mm
･ Durability: 1,000,000 cycles
Benefits
➢ Wide torque lineup
➢ Reducing torque ripple due to transmission
➢ Reducing torque fluctuations due to changes in temperature and humidity
➢ Good responsiveness when switching the rotation direction
➢ Corresponding to used shaft φ6 mm φ8 mm
Applications
Torque wrench for ultrasonic equipment | Multi-function copier | Food and beverage |
Vending machine flap | Scanner | Disposable device for surgery | Printer | Medical electric driver|
ATM banknote transfer section
