ROTARY DAMPERS
FEATURES
➢ Damping direction: CW / CCW

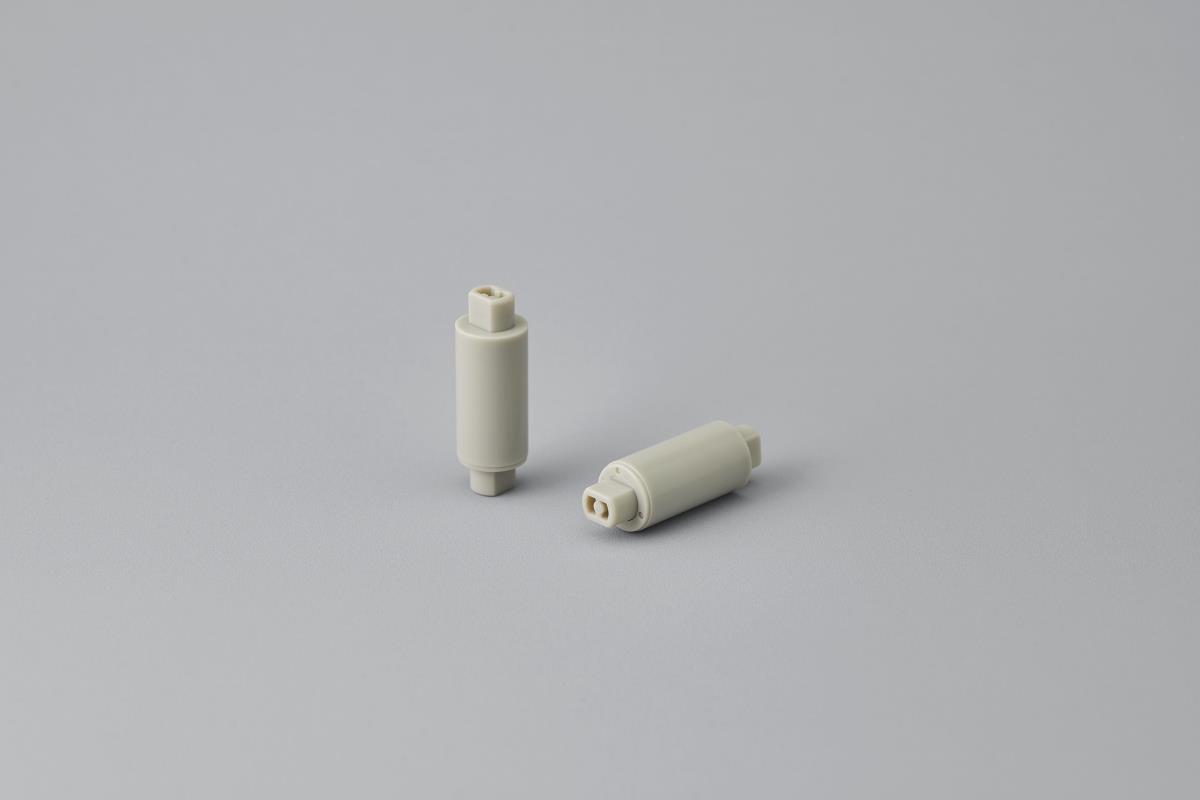

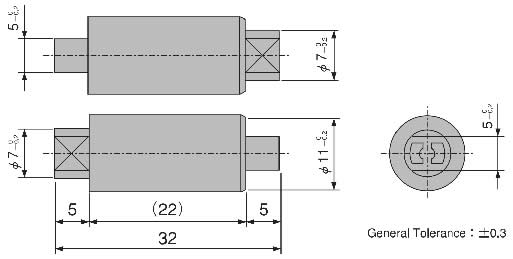

➢ TD73 series dampers have outer diameter of 11mm and housing length of 22mm with maximum torque 0.29N･m
(3kgf･cm) that realized in compact configuration.
➢ RoHS compliance

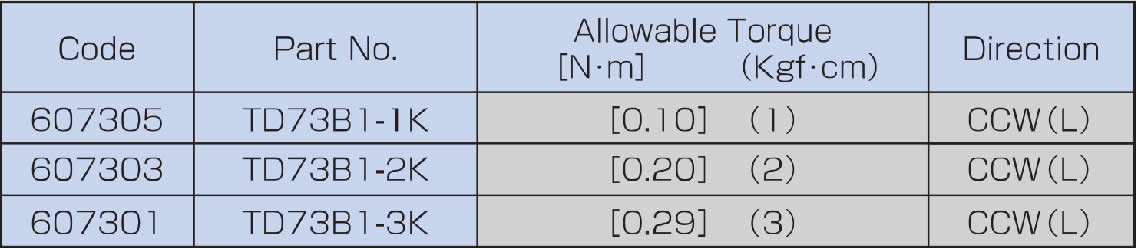

TORQUE VALUE
0.10 - 0.29 N･m

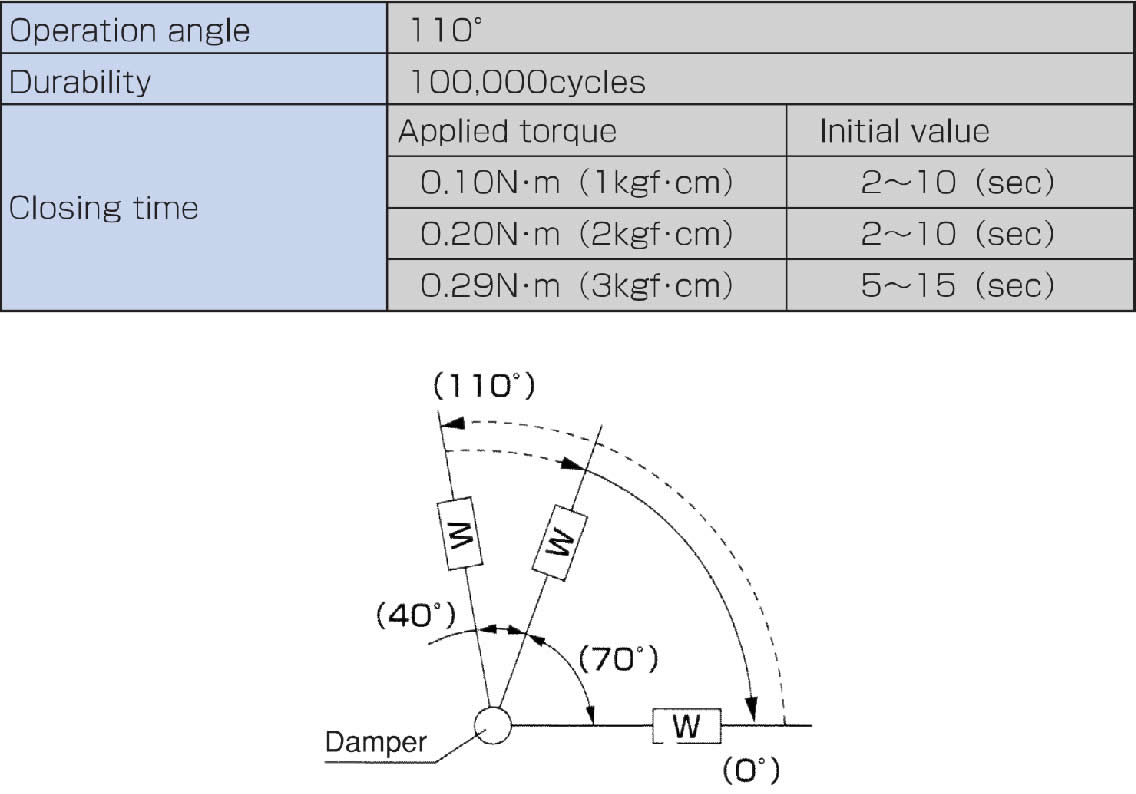

The above drawing shows operation angle of TD73A1 series dampers. Operation angle for TD73B1 series dampers is symmetrical to the vertical line. Shaft position at the time of shipment is closed position.

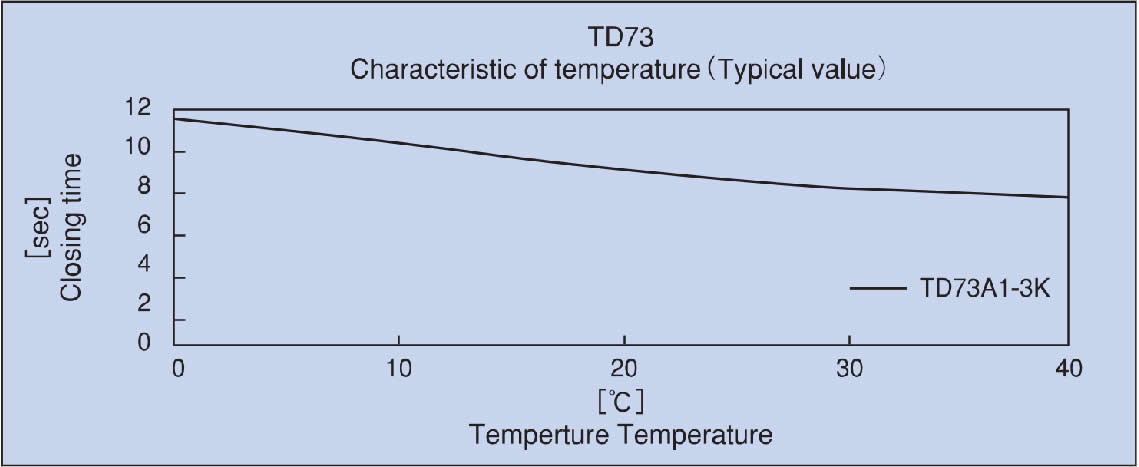

TEST CONDITION
①Setting-up time: 15 sec/cycle
②Load torque:
- 0.10 mNm (1kgf･cm)
- 0.20 mNm (2kgf･cm)
- 0.30 mNm (3kgf･cm)
③Temperature: 23℃±2℃
④Angle for measuring the closing time: 70° → 0°
⑤Radial force: nothing
⑥Closing time after durability test: 1 sec or more
After the damper is stabilized at room temperature for 1 hour or more, the closing time is measured using TOK in-house device.
