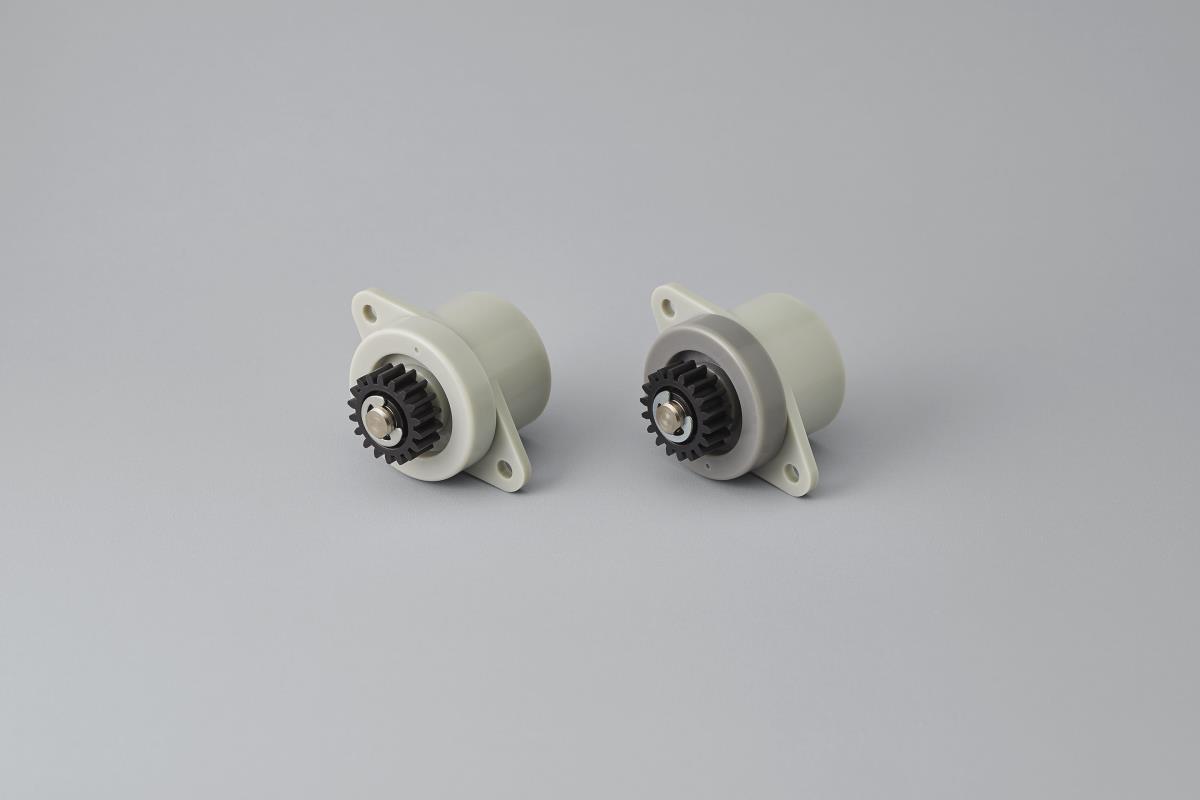

ROTARY DAMPERS
FEATURES
➢ Damping direction: CW / CCW / Bi-direction
➢ The max torque 800 mN･m is the strongest in TOK
bi-directional dampers.
➢ RoHS compliance

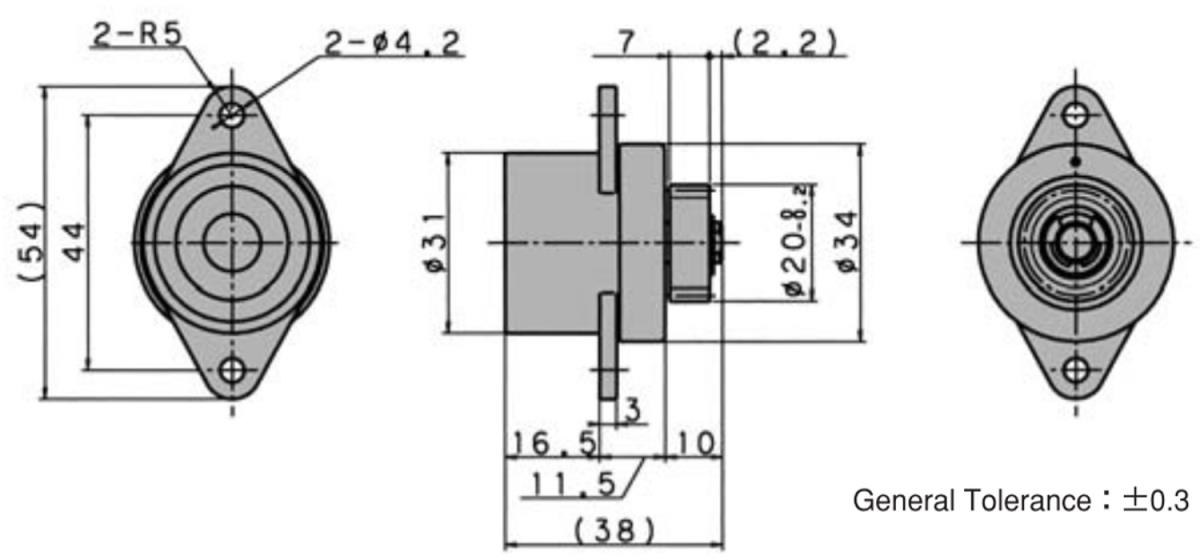

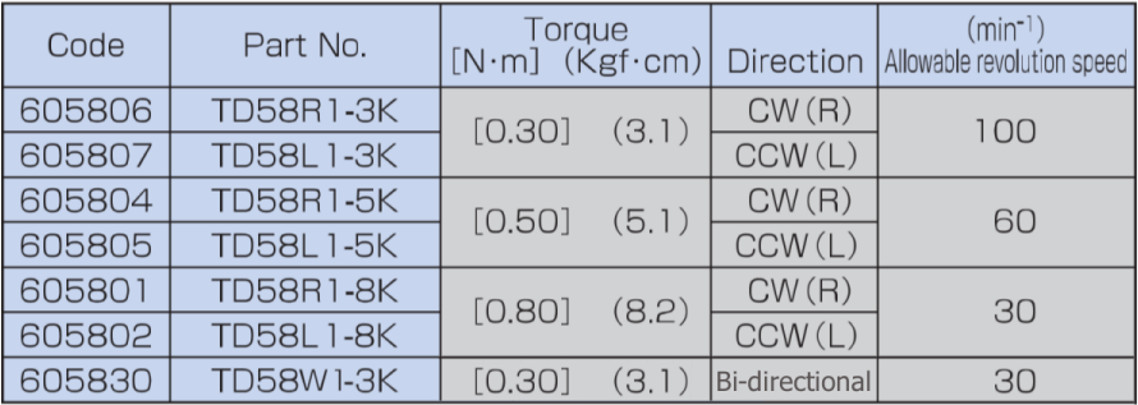

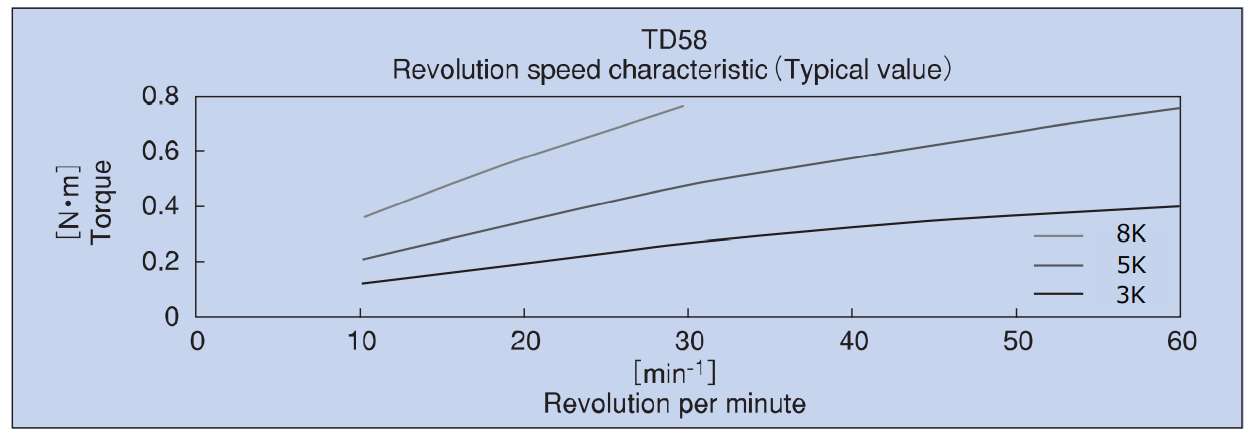

TORQUE VALUE
300 - 800 mN･m
TEST CONDITION

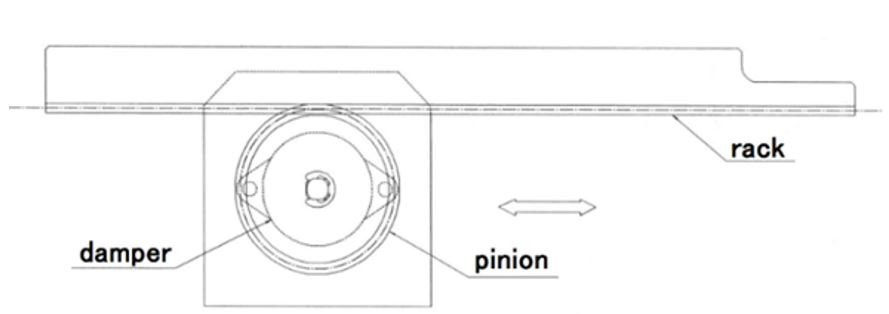

①Test method: Gear meshing test by rack and pinion

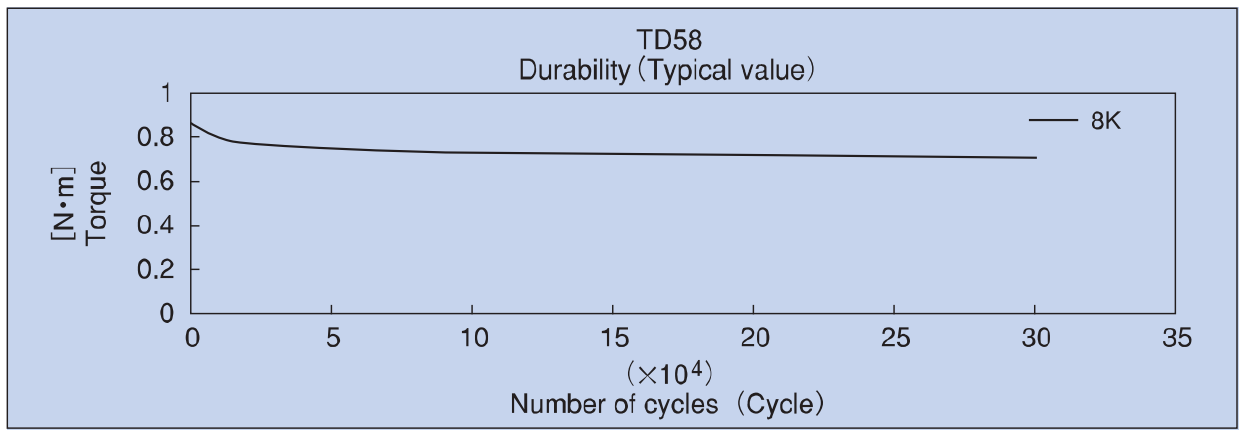

②Number of cycle: 200,000 cycles (1 reciprocal motion = 1 cycle)
③Length of rack: ℓ = 180mm
④Moving speed: 75mm/sec
⑤Revolution speed: 30min-1

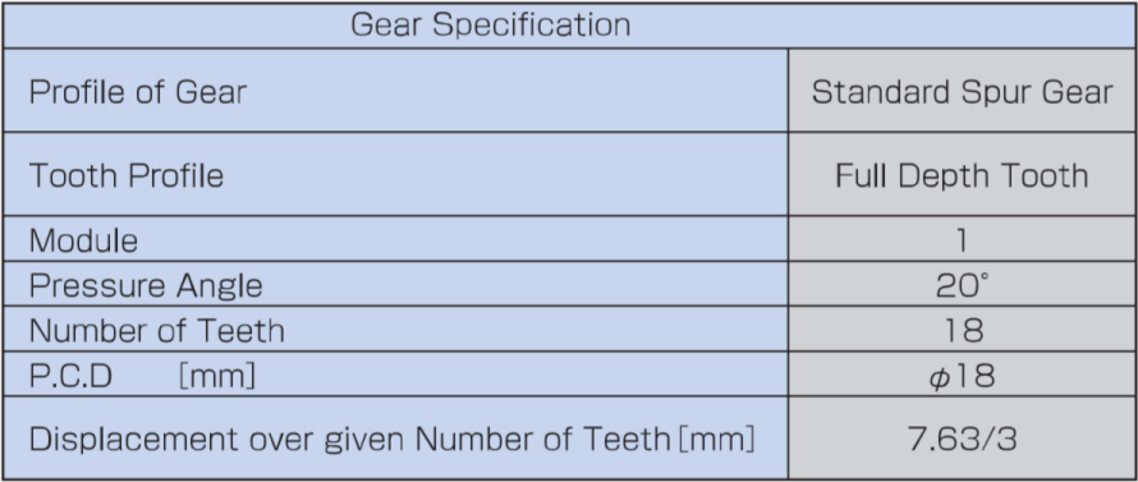

⑥Pinion:
- P.C.D = Φ48
- Module = 1.5
- Number of teeth = 32
⑦Torque value after the test: 0.5N･m or more
⑧Number of damper revolution per cycle: approx. 1.2 rev. in one-way

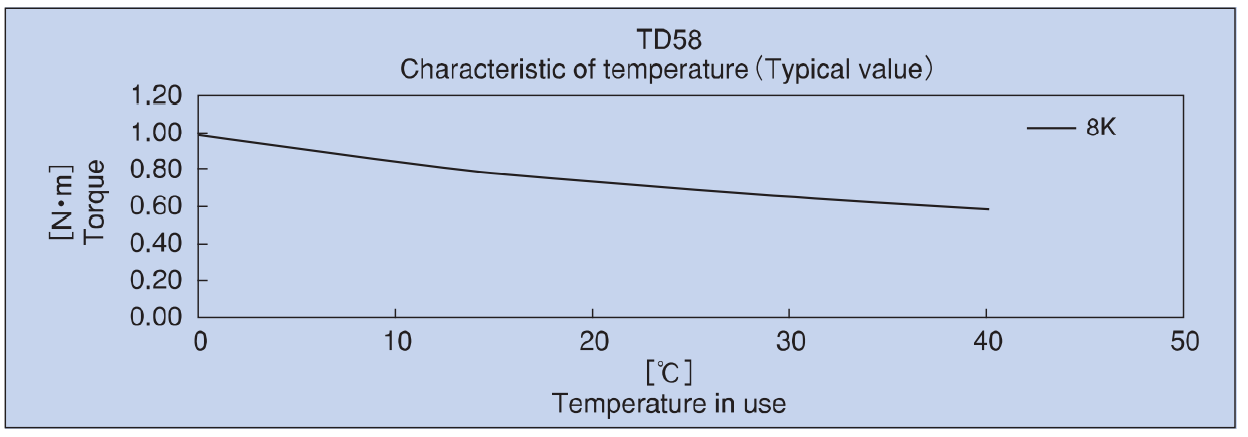

After the damper is stabilized at room temperature for 1 hour or more, the torque is measured at 30min-1.
