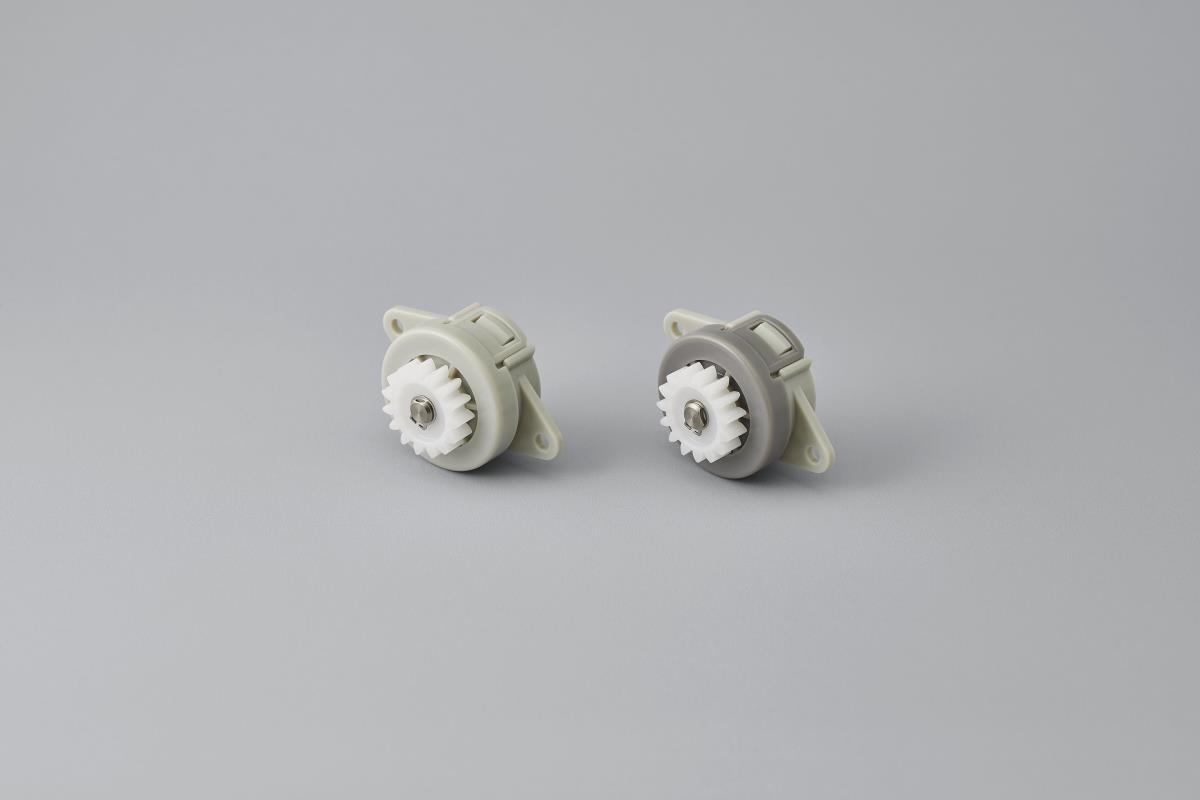

ROTARY DAMPERS
FEATURES
➢ Damping direction: CW / CCW / Bi-direction
➢ TD62 series dampers are wide range which can be covered 30mN･m - 200mN･m.
➢ RoHS compliance
TORQUE VALUE
30 - 200 mN･m
TEST CONDITION

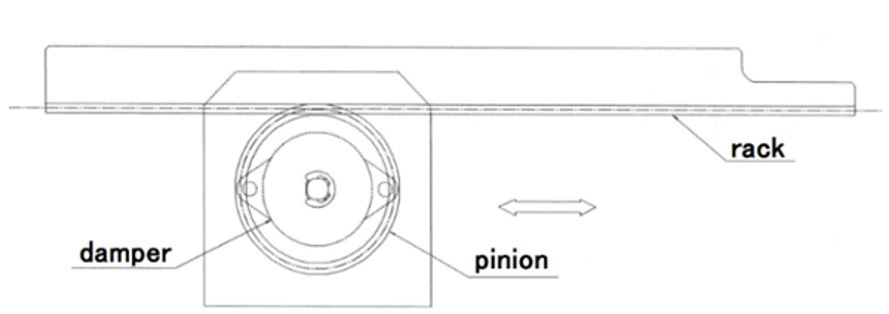

①Test method: Gear meshing test by rack and pinion

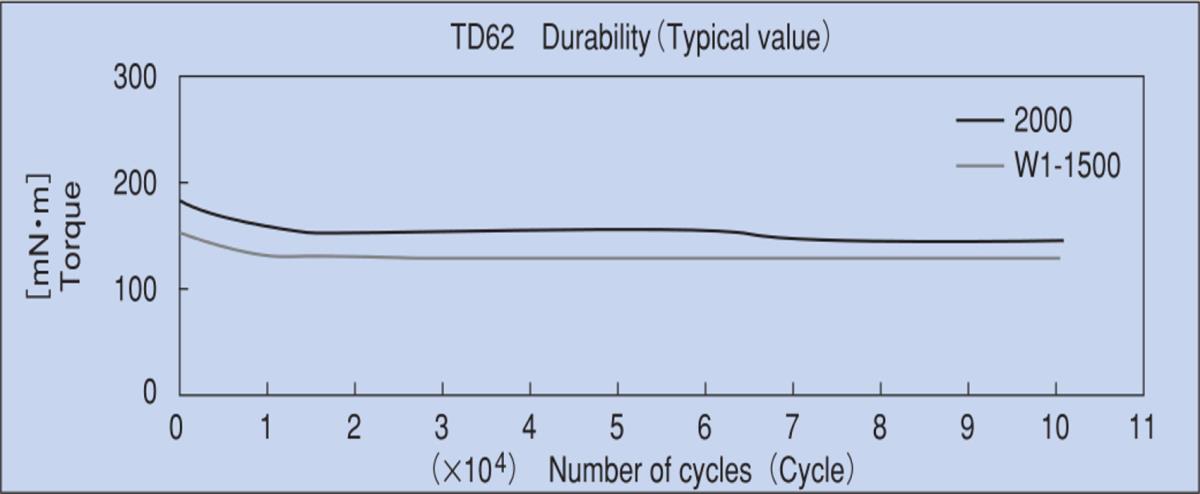

②Number of cycle: 100,000 cycles (1 reciprocal motion = 1 cycle)
③Length of rack: ℓ = 50mm
④Moving speed: 24mm/sec

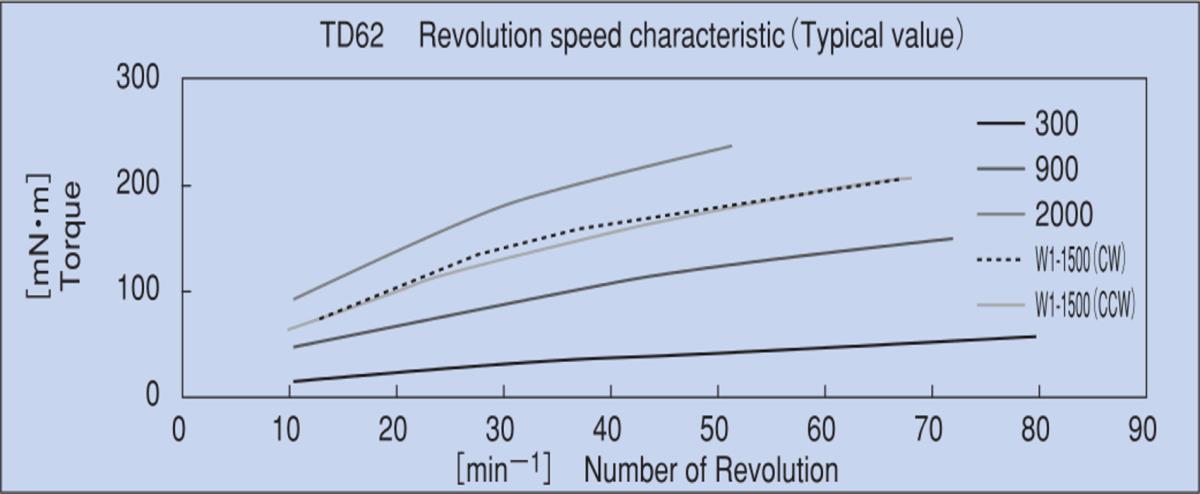

⑤Revolution speed: 30min-1

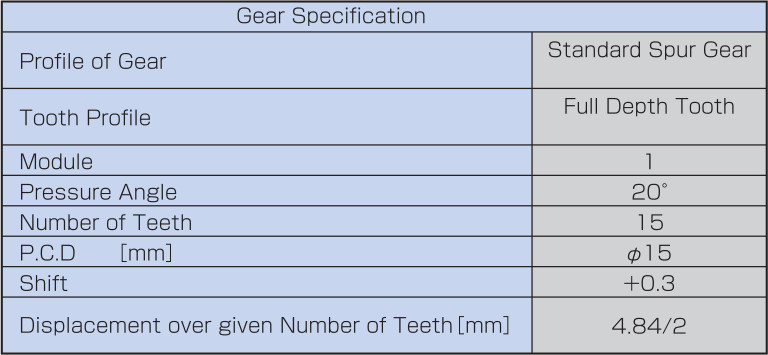

⑥Pinion: Same as the above gear specification
⑦Torque value after the test: 0.12N･m or more
⑧Number of damper revolution per cycle: approx. 1 rev. in one-way

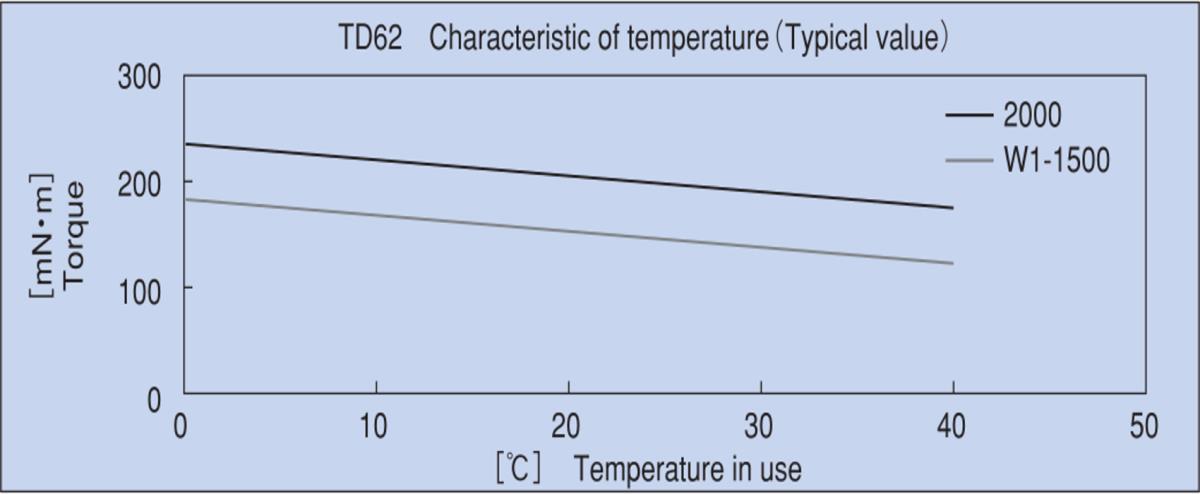

After the damper is stabilized at room temperature for 1 hour or more, the torque is measured at 30min-1.
