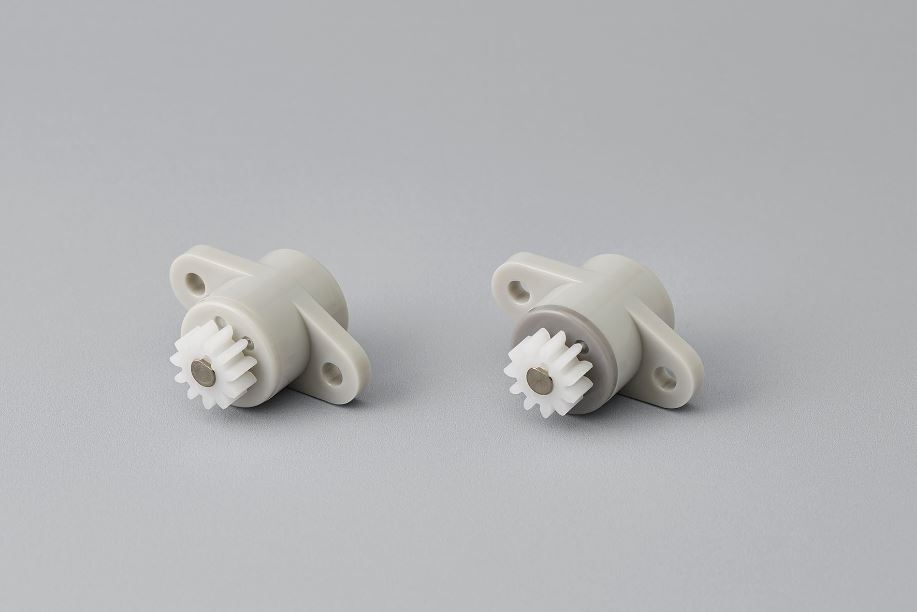

ROTARY DAMPERS
FEATURES
➢ Damping direction: CW / CCW

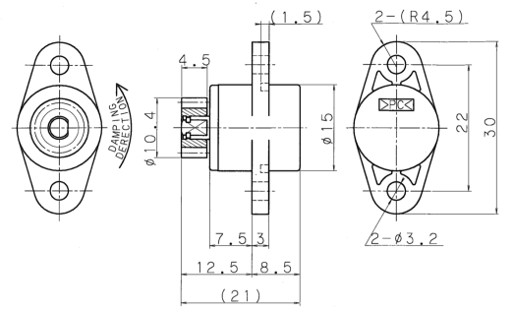

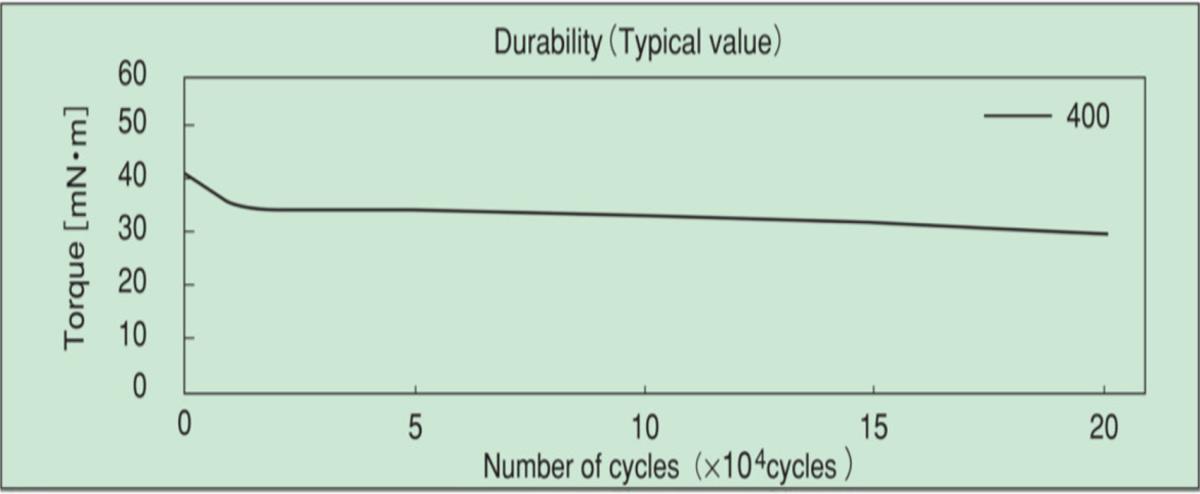

➢ TD88 series dampers have the advantage on the durability which can be covered through 200,000 cycles.
➢ Compact size: Φ15
➢ RoHS compliance
TORQUE VALUE

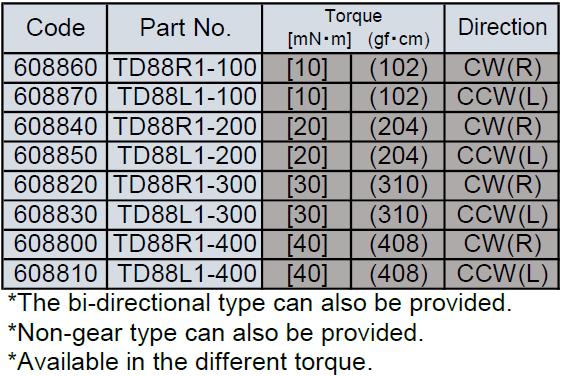

10 - 40 mN･m
TEST CONDITION

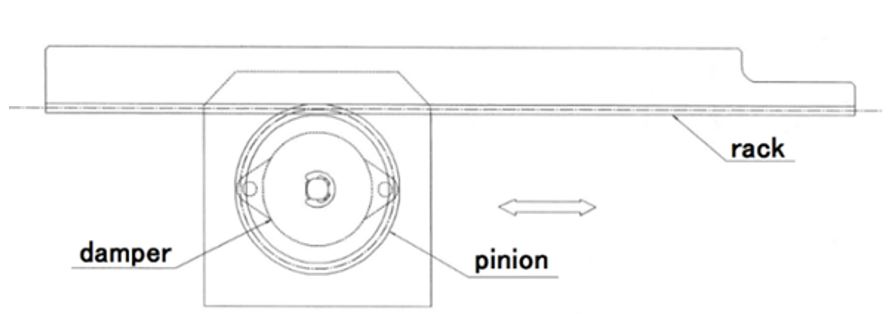

①Test method: Gear meshing test by rack and pinion
②Number of cycle: 200,000 cycles
(1 reciprocal motion = 1 cycle)
③Length of rack: ℓ = 30mm
④Moving speed: 14mm/sec
⑤Revolution speed: 30min-1

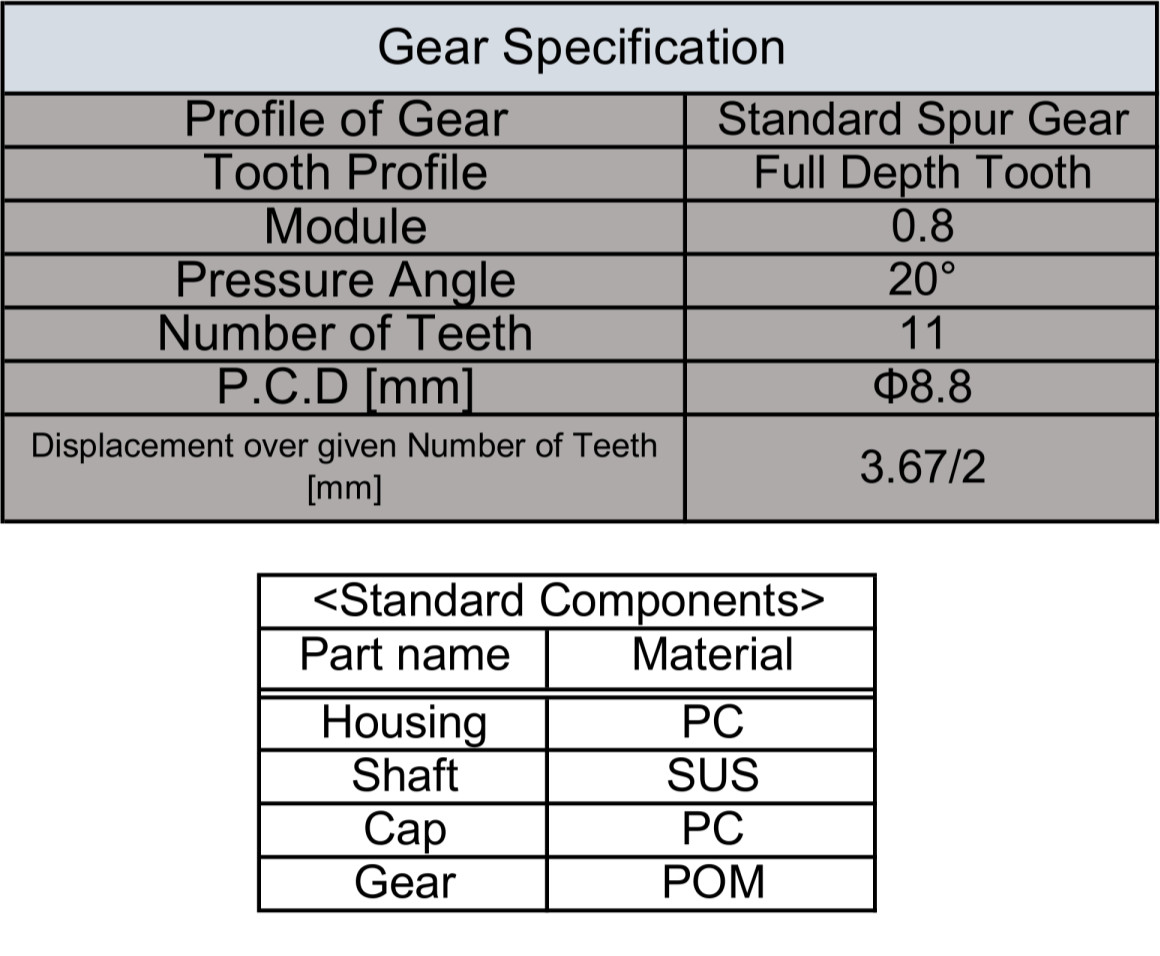

⑥Pinion: Same as the above gear specification
⑦Torque value after the test: 20mN･m or more
⑧Number of damper revolution per cycle:
approx. 1 rev. in one-way

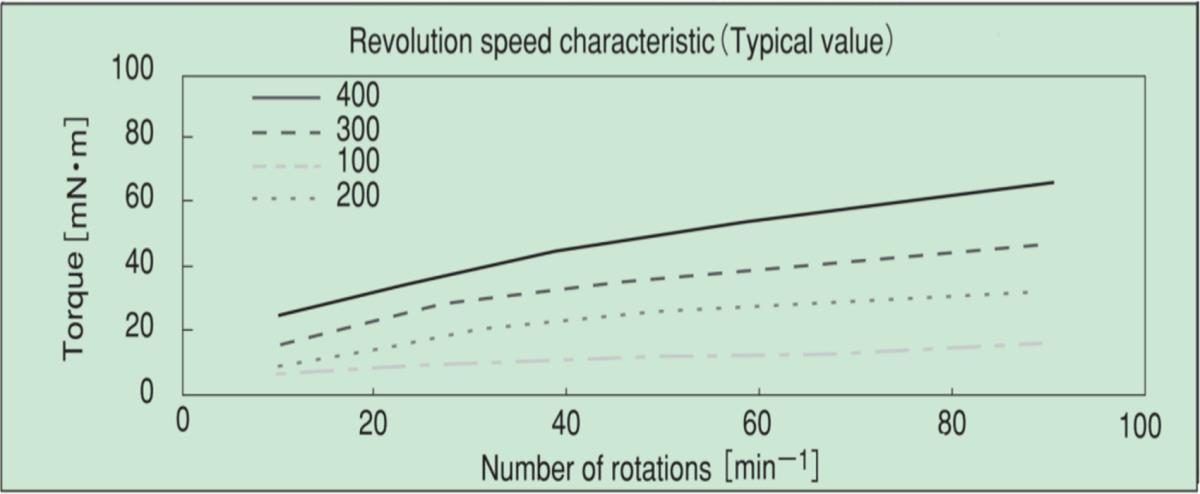

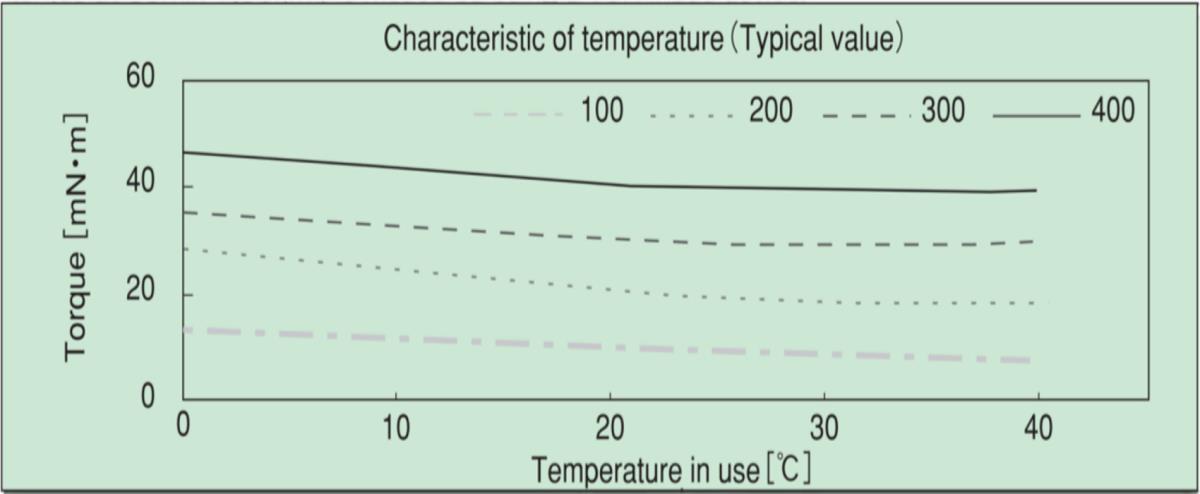

The torque is measured in normal temperature.
After the damper is stabilized at room temperature for
1 hour or more.
The torque is measured at 30min-1.
