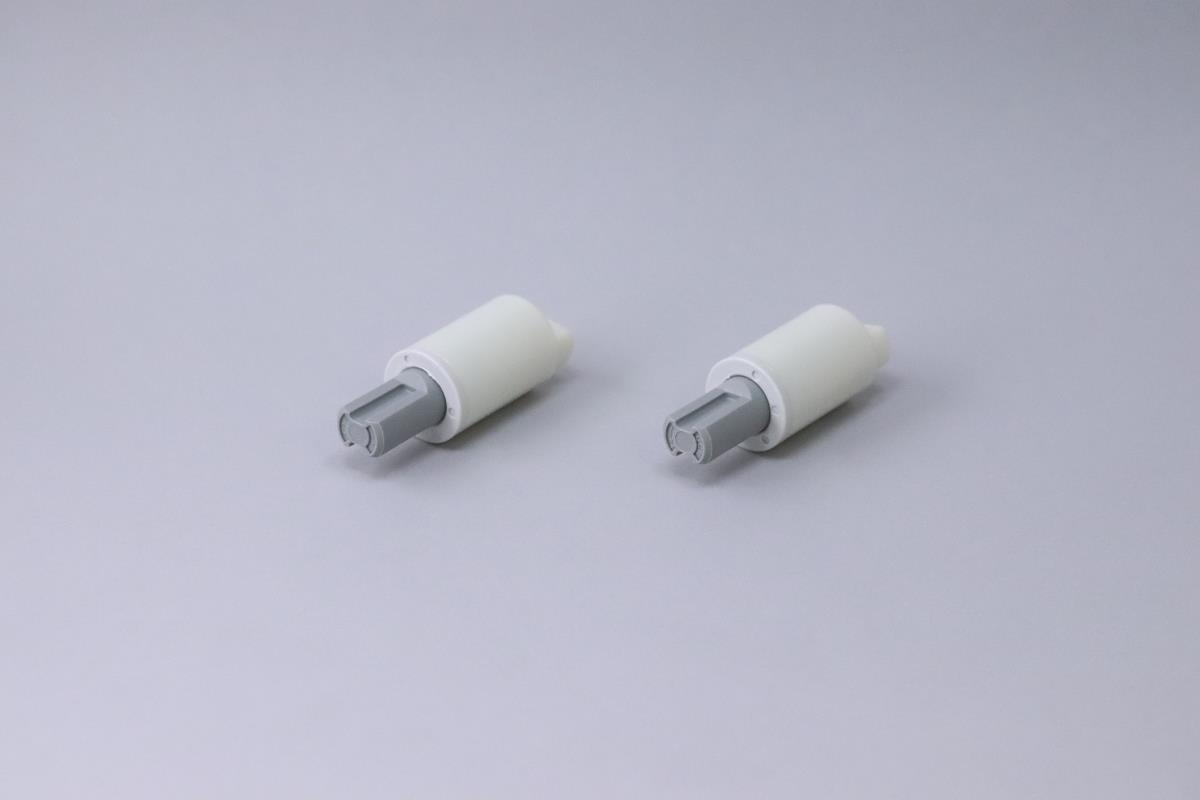

ROTARY DAMPERS
FEATURES
➢ Damping direction: CW / CCW
➢ TD118 series dampers can be covered the torque value through 3.5N･m at maximum even though all of the material plastic used.
➢ RoHS compliance

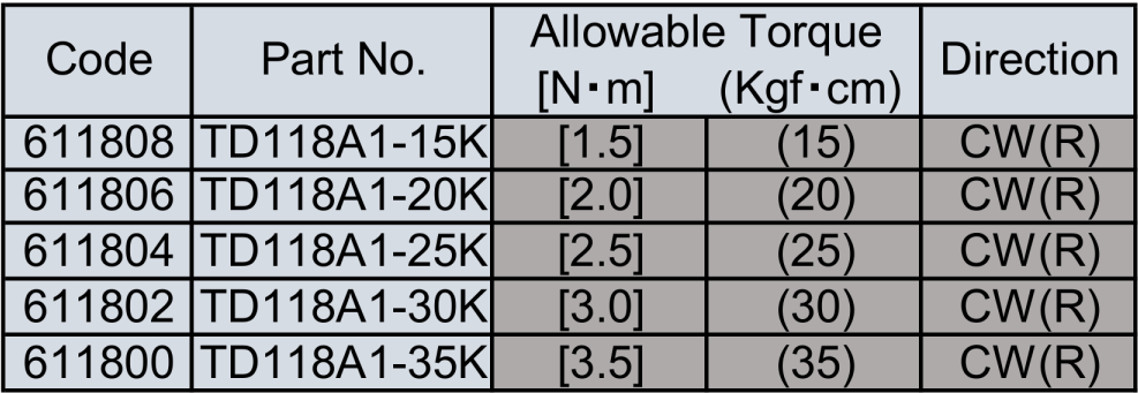

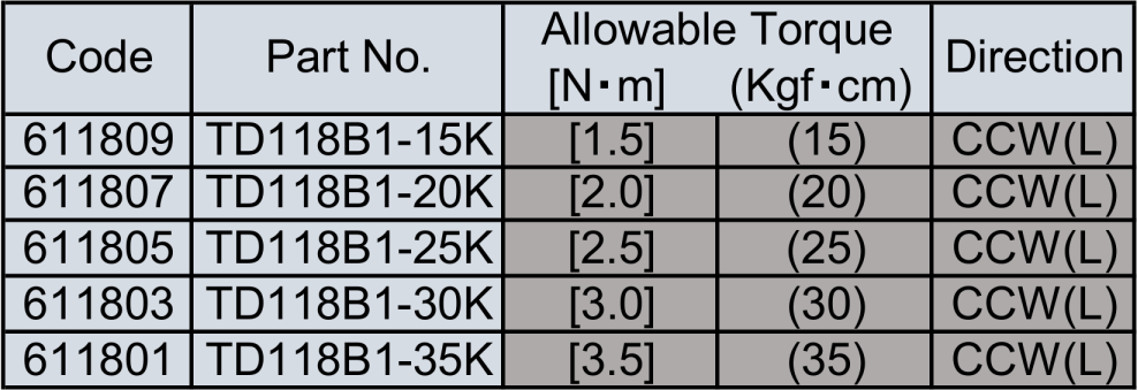

TORQUE VALUE
1.5 - 3.5 N･m

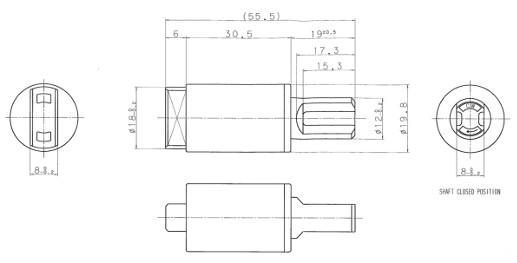

The above drawing shows operation angle of TD118A1 series dampers. Operation angle of TD118B1 series is symmetrical to the vertical line. Shaft position at the time of shipment is closed position.

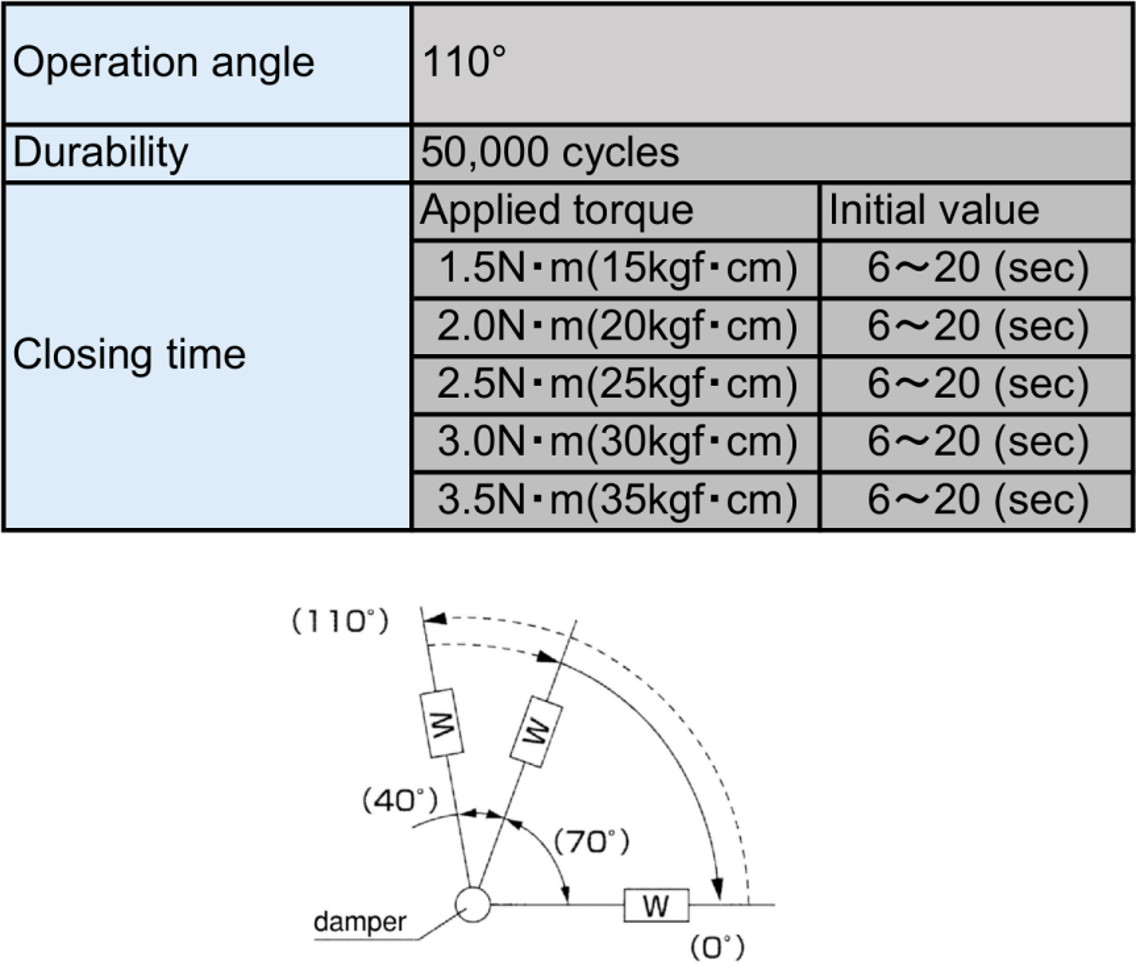

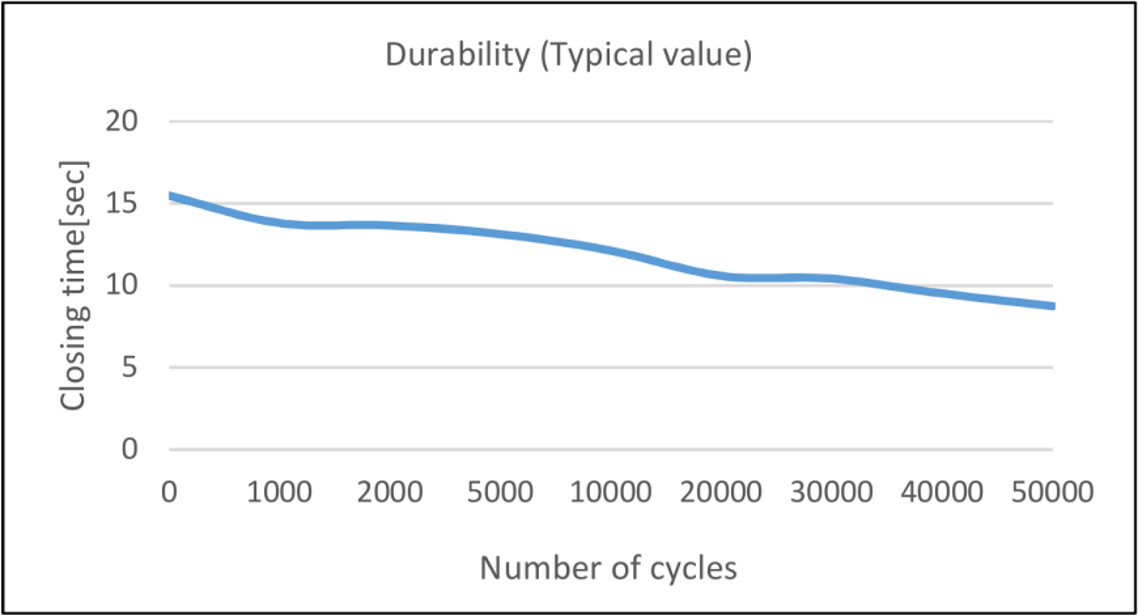

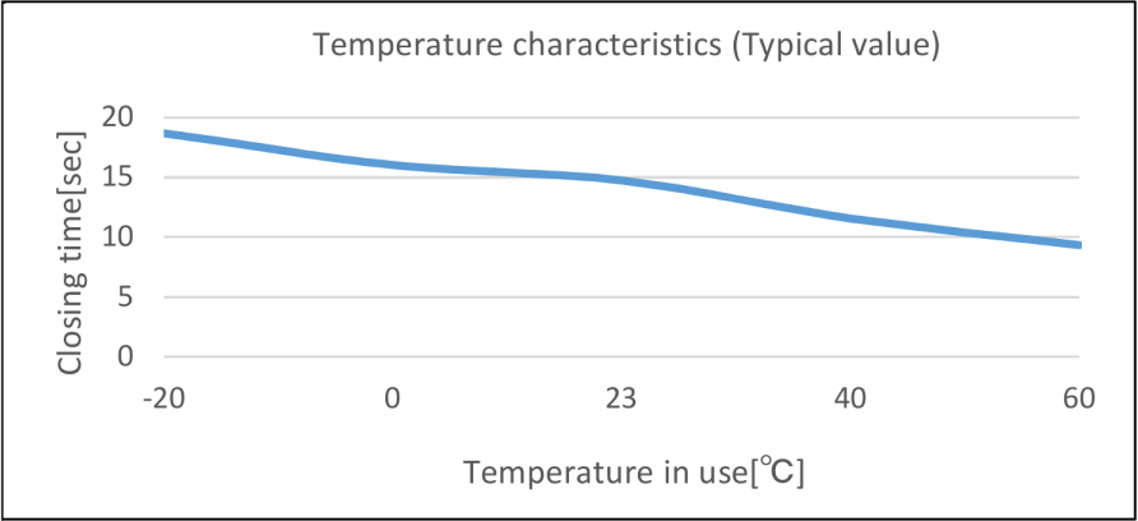

TEST CONDITION
①Setting-up time: 20 sec/cycle
②Load torque:
- 1.5 N･m (15kgf･cm)
- 2.0 N･m (20kgf･cm)
- 2.5 N･m (25kgf･cm)
- 3.0 N･m (30kgf･cm)
- 3.5 N･m (35kgf･cm)
③Temperature: 23℃±2℃
④Angle for measuring the closing time: 70° → 0°
⑤Radial force: nothing
⑥Closing time after durability test: 1 sec or more
After the damper is stabilized at room temperature for 1 hour or more, the closing time is measured using TOK in-house device.
