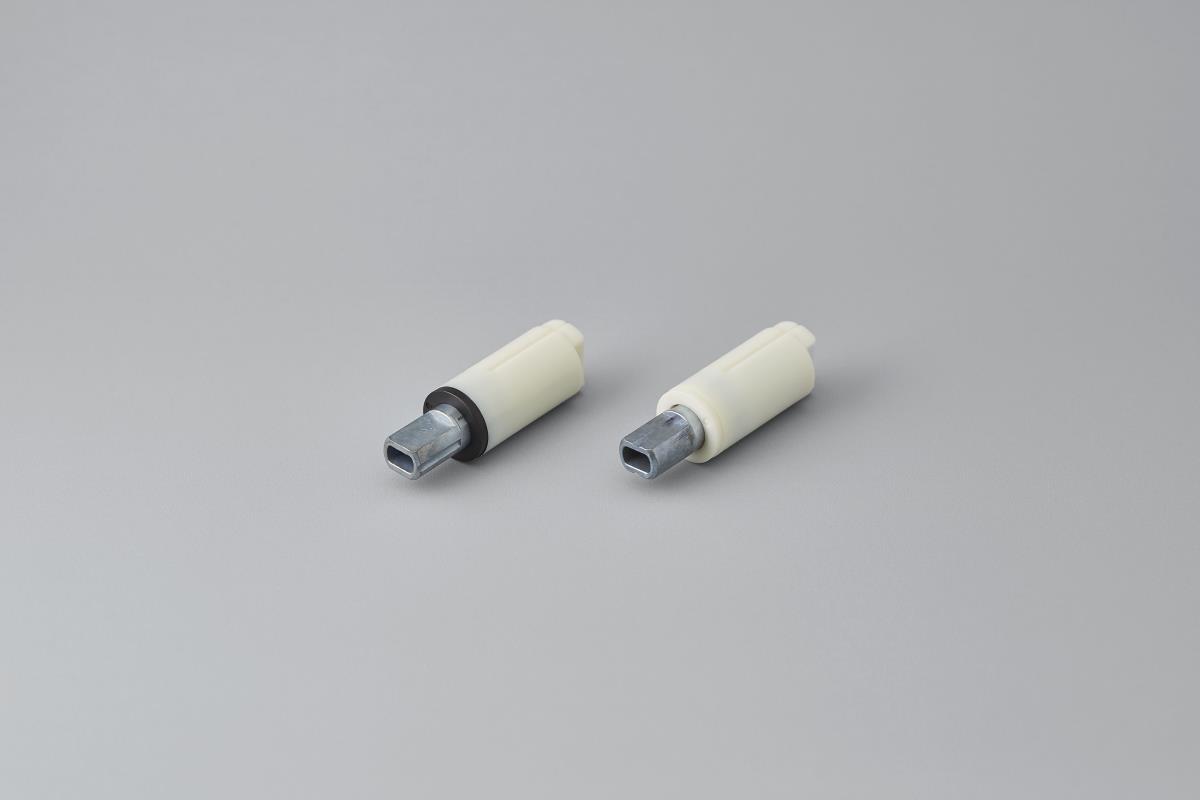

ROTARY DAMPERS
FEATURES
➢ Damping direction: CW / CCW
➢ TD100 series dampers can be covered the torque through
3.0 N･m at maximum with Φ16 diameter of outer.
➢ It has the advantage on the chemical resistance due to using PBT material.
➢ RoHS compliance
TORQUE VALUE
0.98 - 2.94 N･m

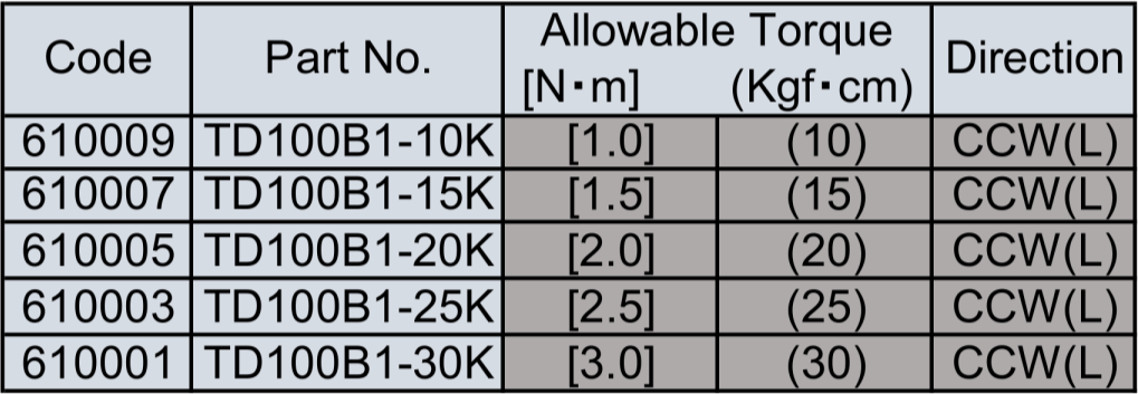

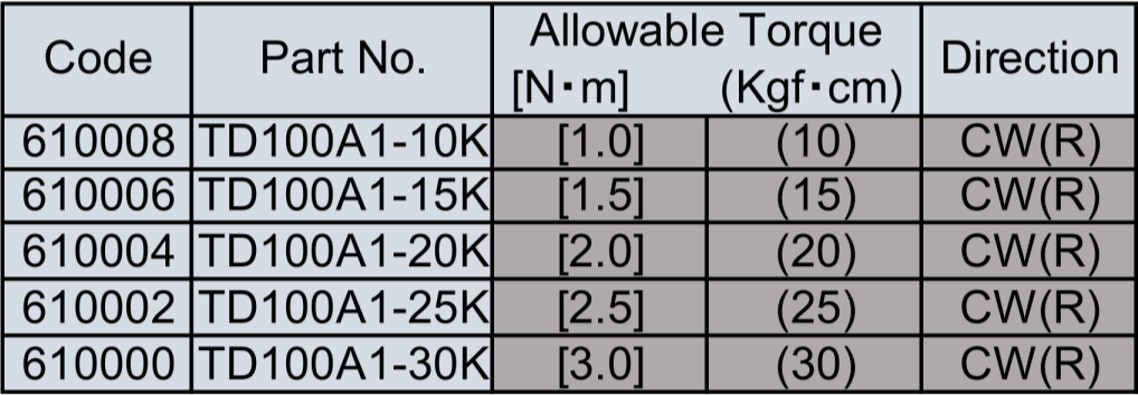

The above drawing shows operation angle of TD100A1 series dampers. Operation angle of TD100B1 series is symmetrical to the vertical line. Shaft position at the time of shipment is closed position.
TEST CONDITION
①Setting-up time: 20 sec/cycle
②Load torque:
- 1.0 N･m (10kgf･cm)
- 1.5 N･m (15kgf･cm)
- 2.0 N･m (20kgf･cm)
- 2.5 N･m (25kgf･cm)
- 3.0 N･m (30kgf･cm)

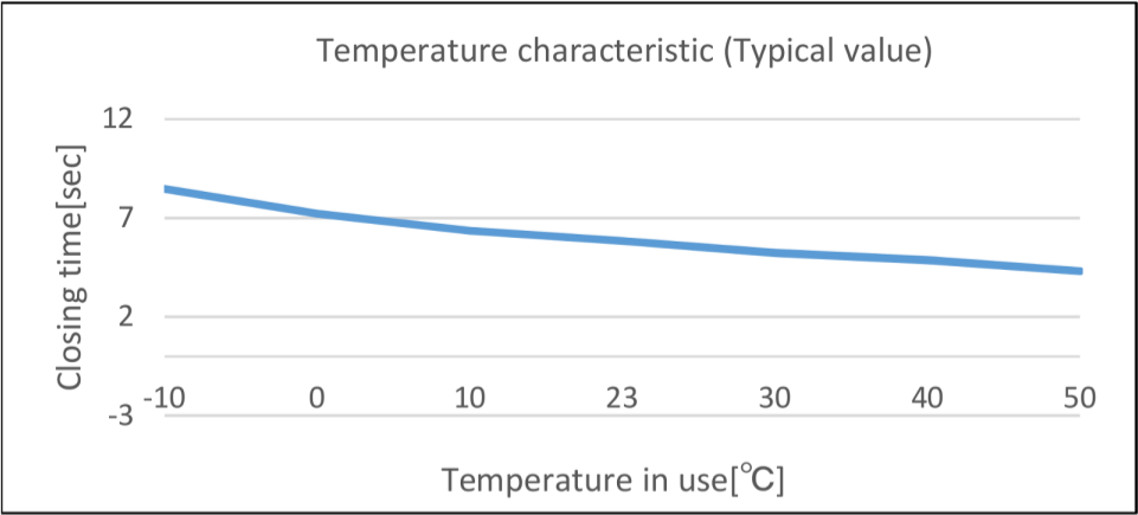

③Temperature: 23℃±2℃
④Angle for measuring the closing time: 70° → 0°
⑤Radial force: nothing
⑥Closing time after durability test: 1 sec or more
After the damper is stabilized at room temperature for 1 hour or more, the closing time is measured using TOK in-house device.
