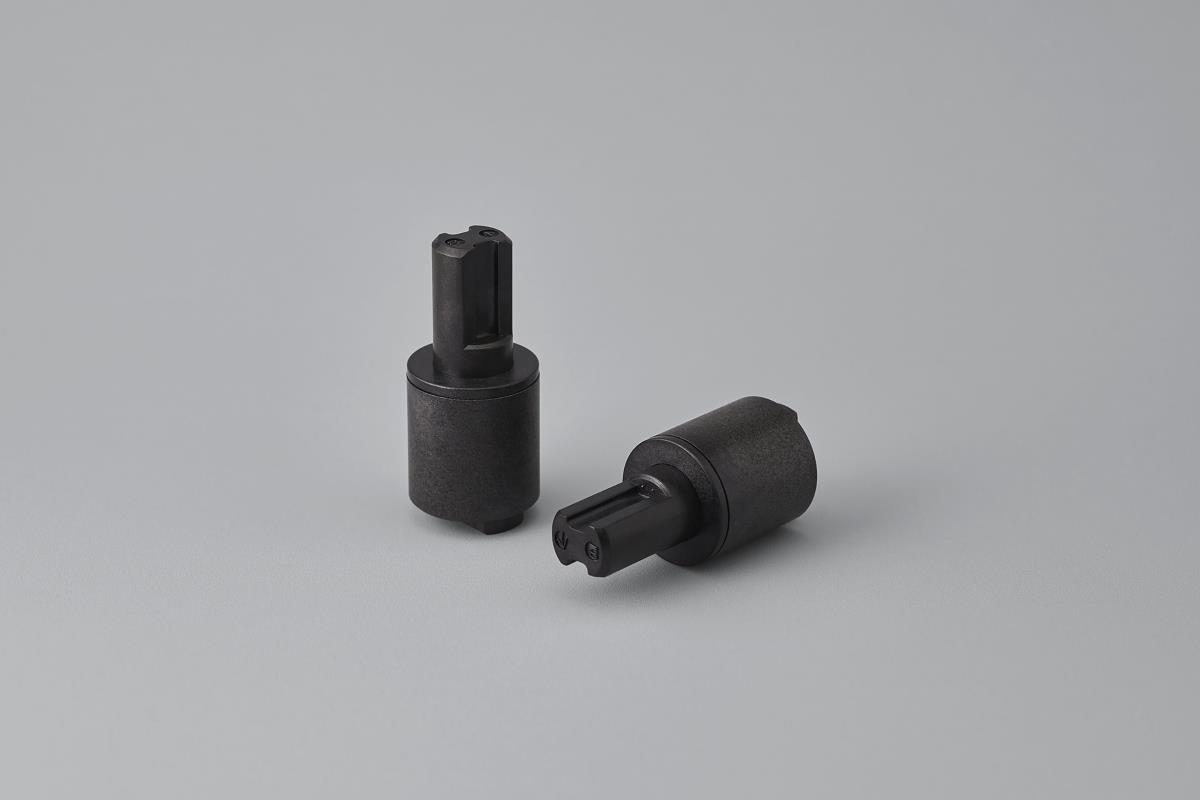

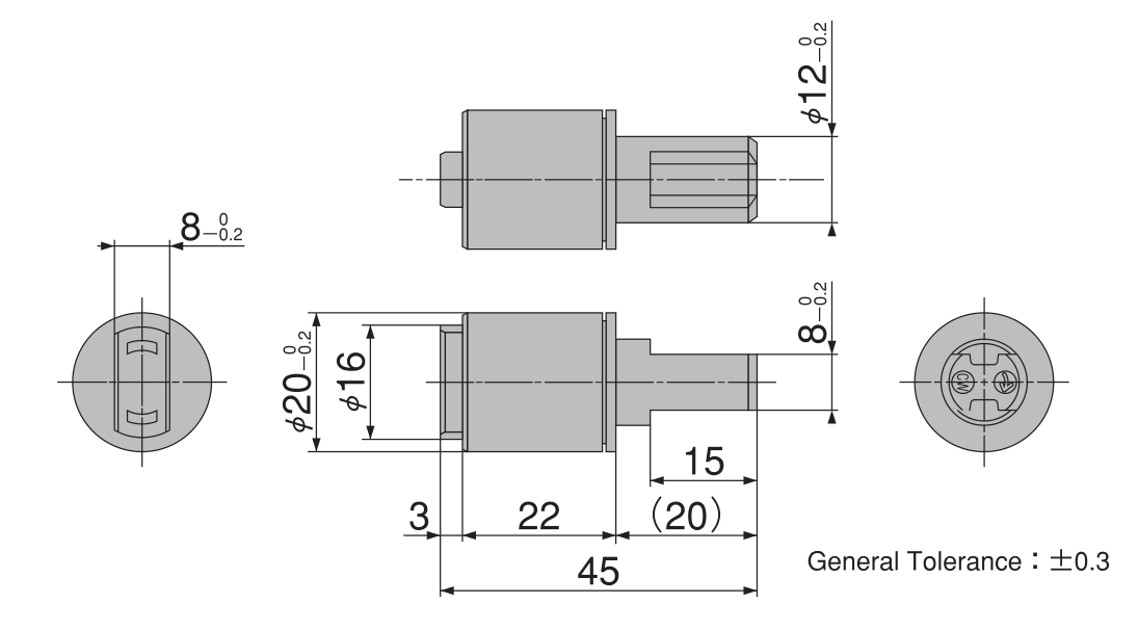

ROTARY DAMPERS
FEATURES
➢ Damping direction: CW / CCW

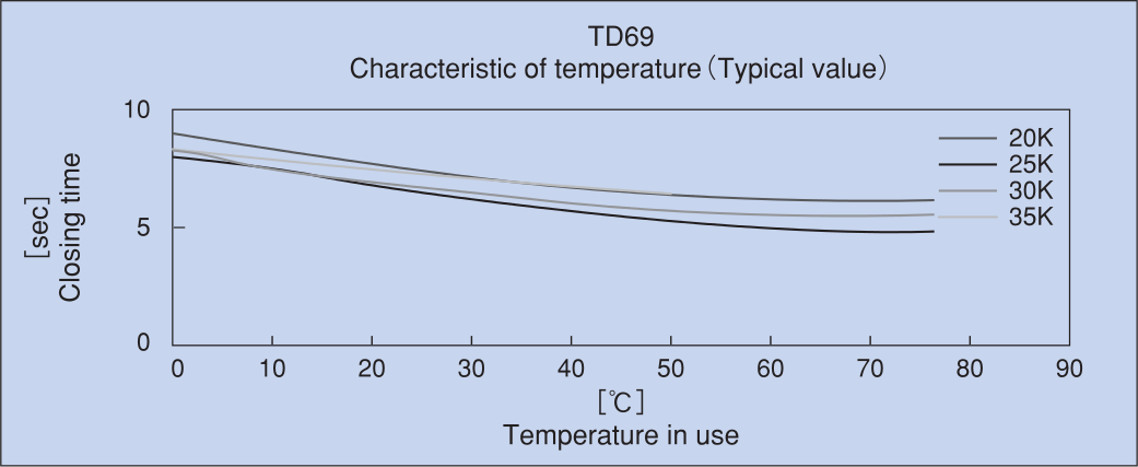

➢ TD69 series dampers can be used in the high temperature through 80℃.
➢ RoHS compliance

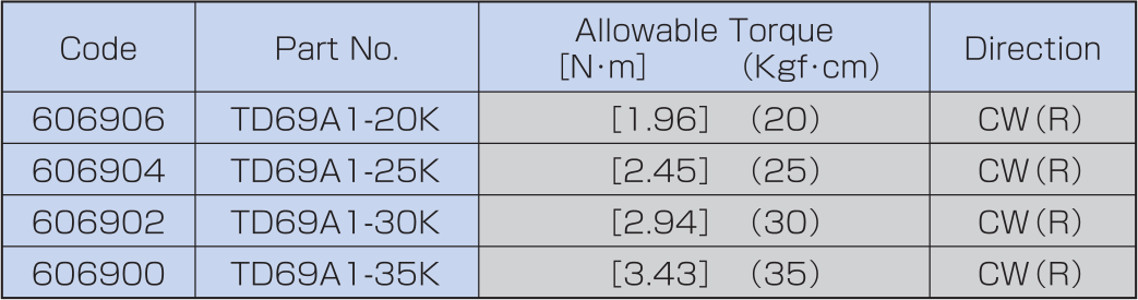

TORQUE VALUE
1.96 - 3.43 N･m

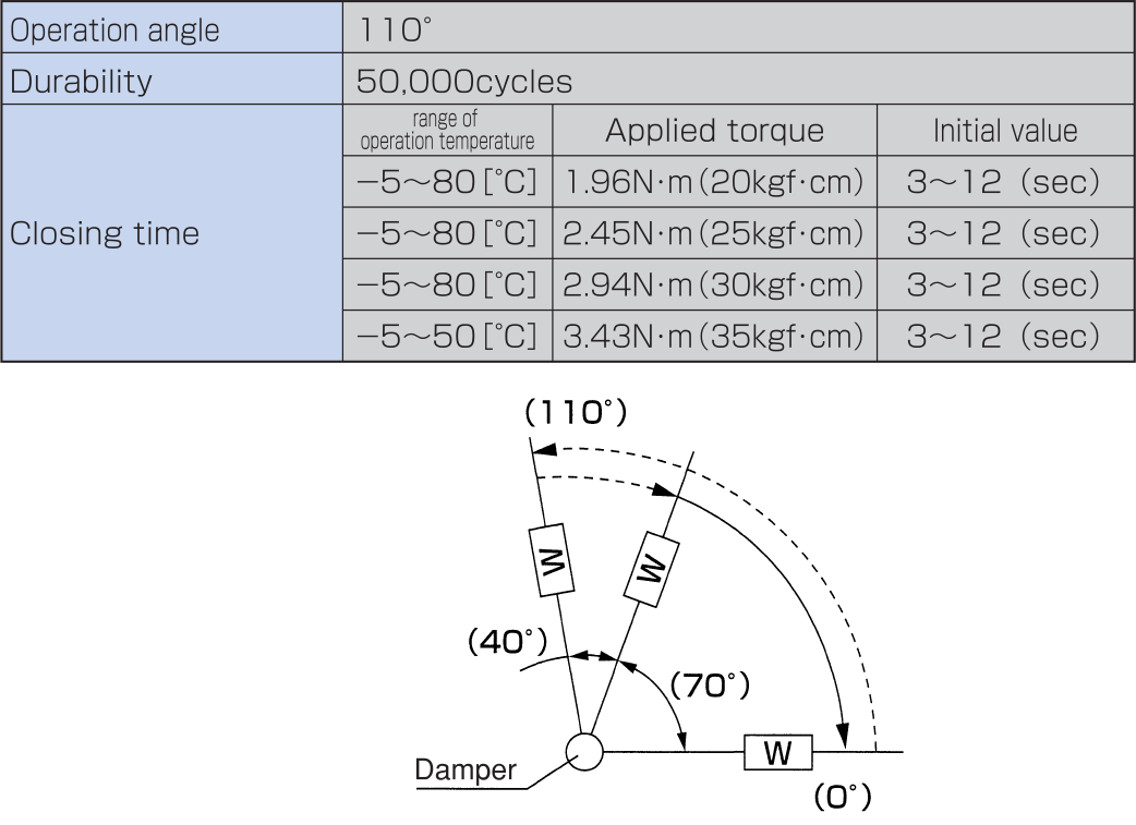

The above drawing shows operation angle of TD69A1 series dampers. Operation angle of TD69B1 series is symmetrical to the vertical line. Shaft position at the time of shipment is closed position.
TEST CONDITION
①Setting-up time: 15 sec/cycle
②Load torque:
- 1.96 N･m (20kgf･cm)
- 2.45 N･m (25kgf･cm)
- 2.94 N･m (30kgf･cm)
- 3.43 N･m (35kgf･cm)
③Temperature: 23℃±2℃
④Angle for measuring the closing time: 70° → 0°
⑤Radial force: nothing

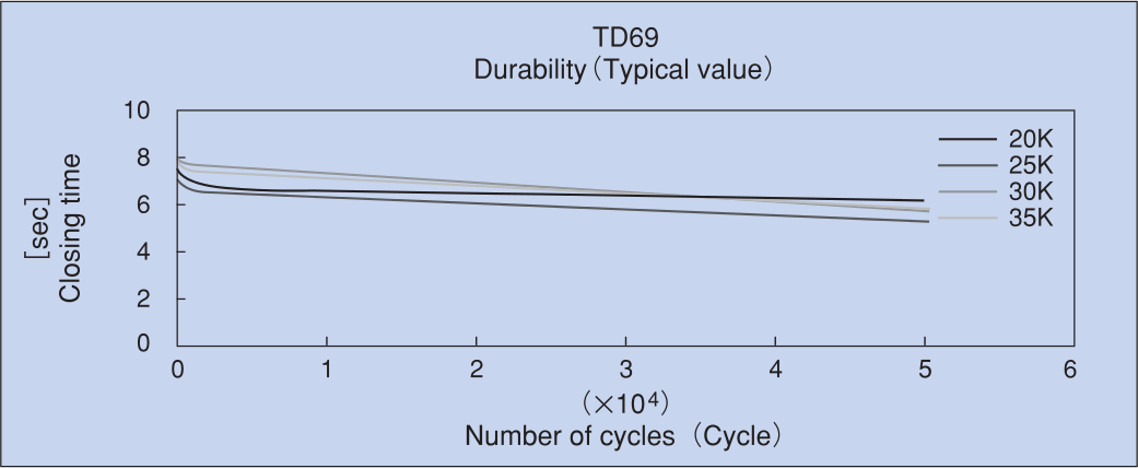

⑥Closing time after durability test: 1 sec or more
After the damper is stabilized at room temperature for 1 hour or more, the closing time is measured using TOK in-house device.
