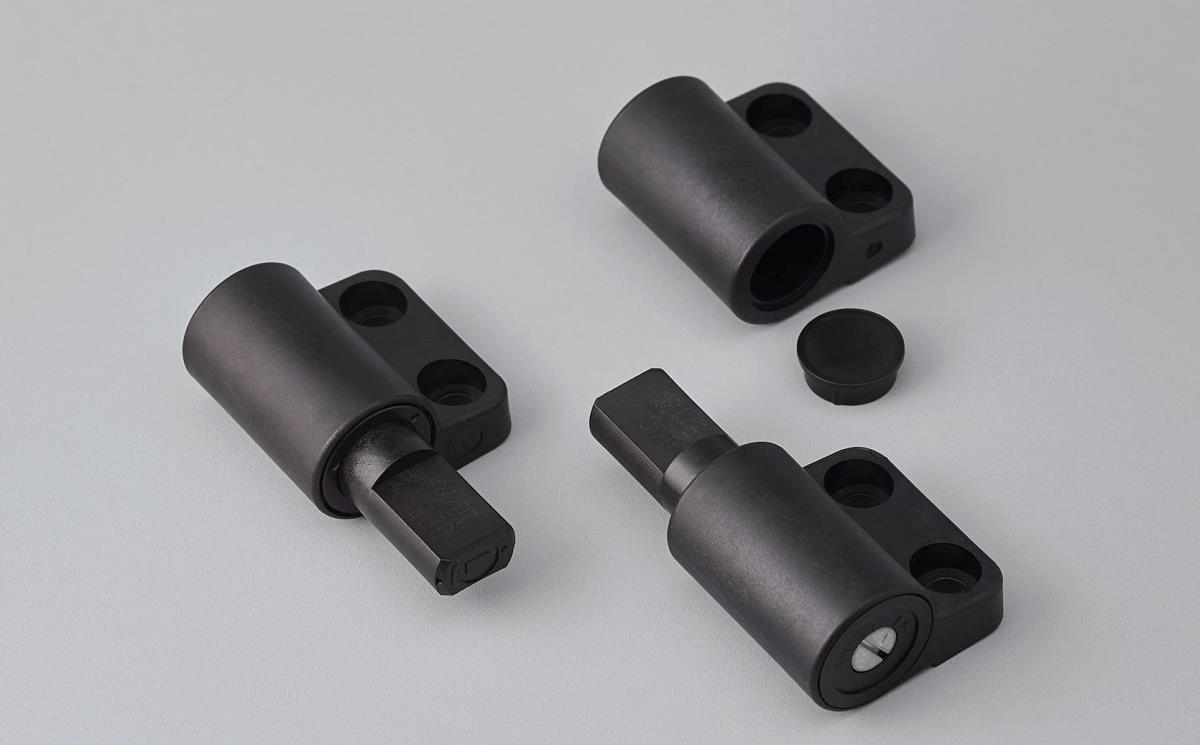

ROTARY DAMPERS

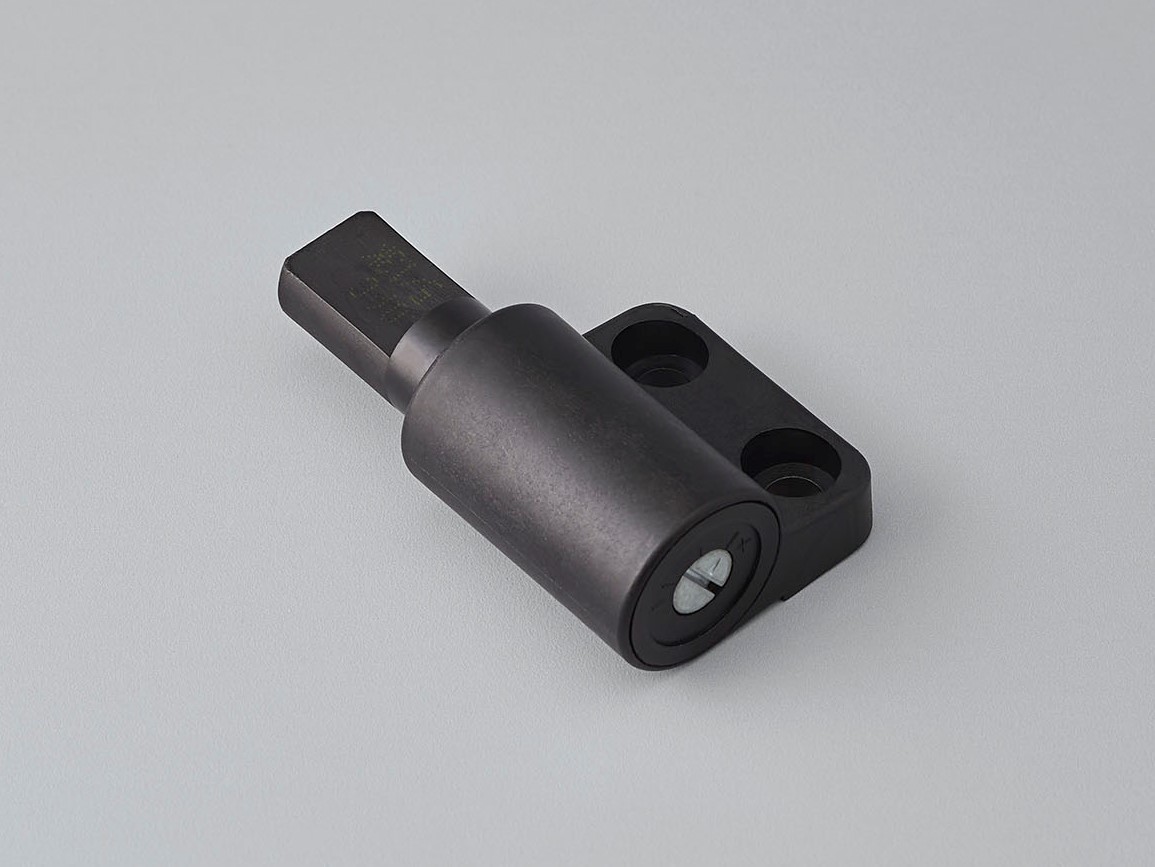

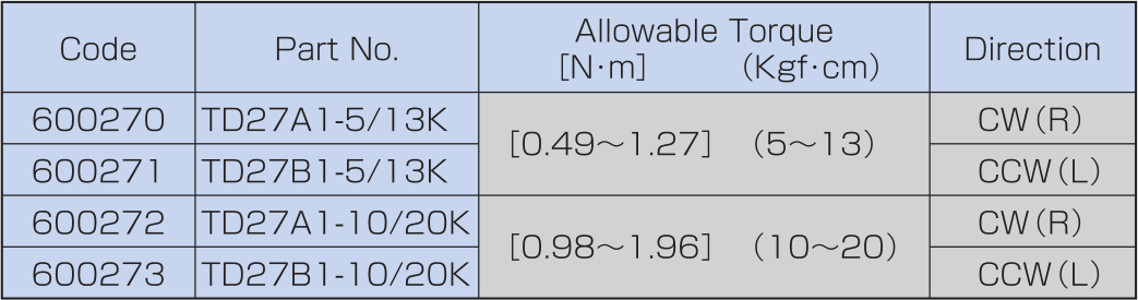

TD27 Series

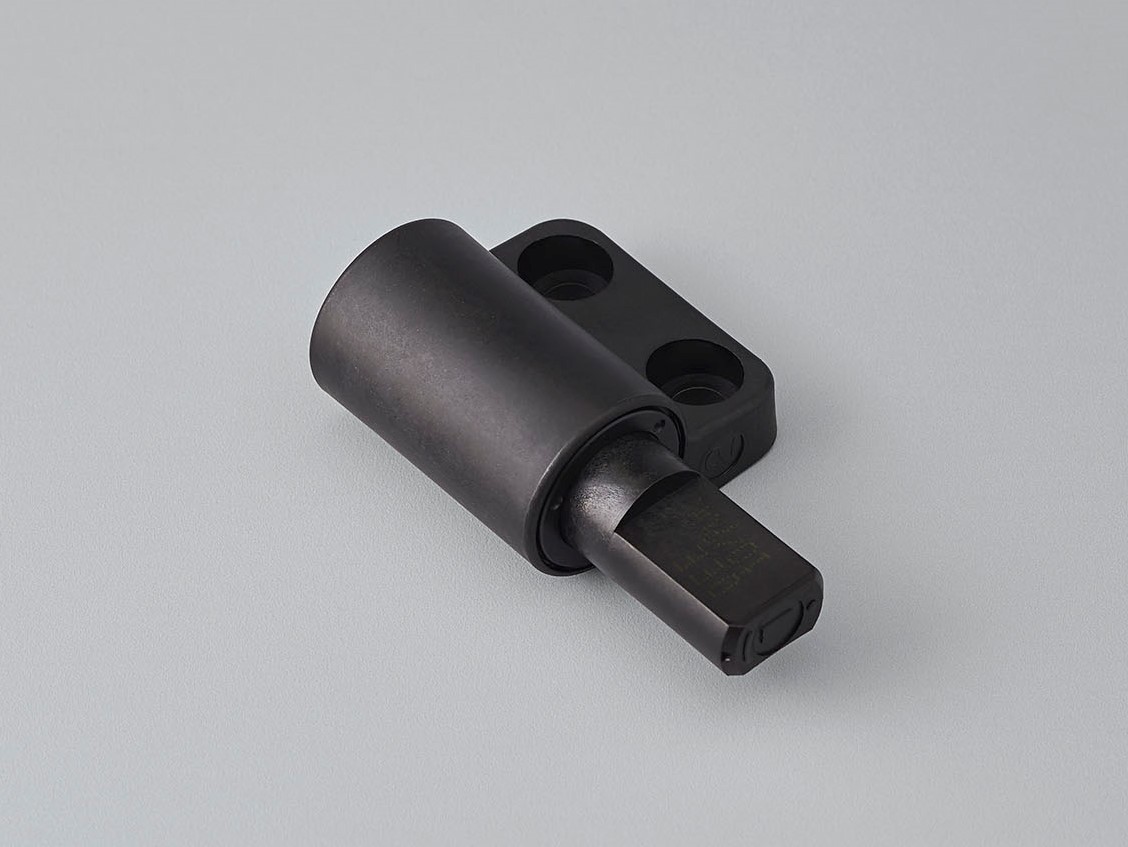

TD28 Series

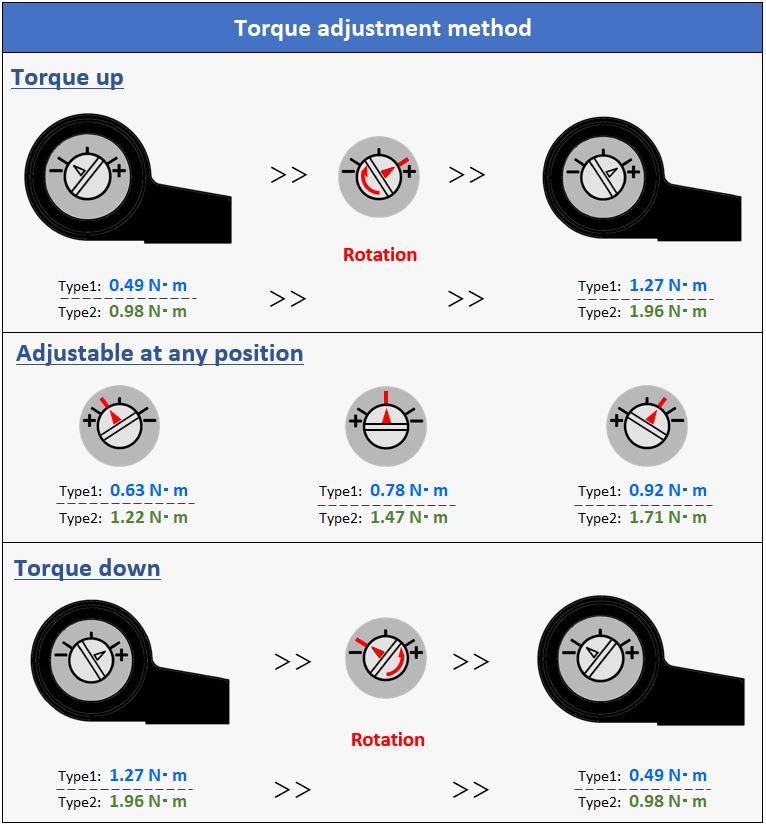

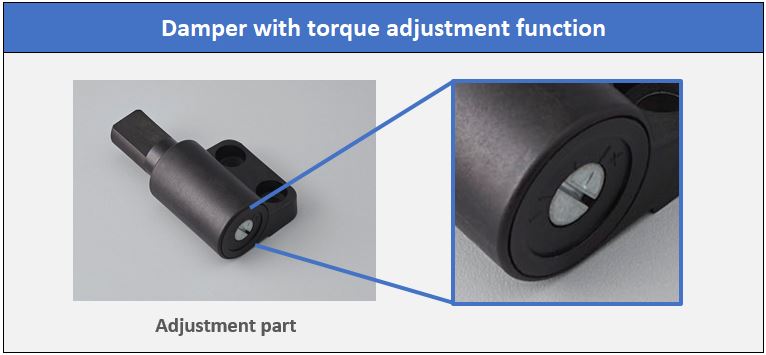

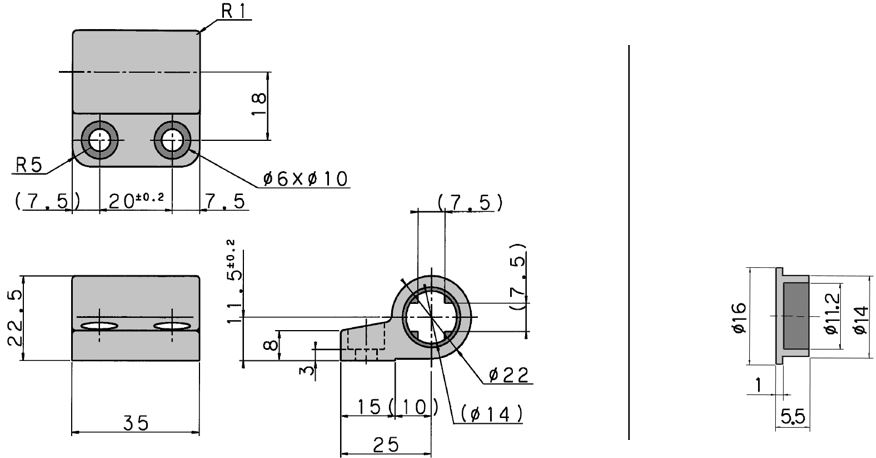

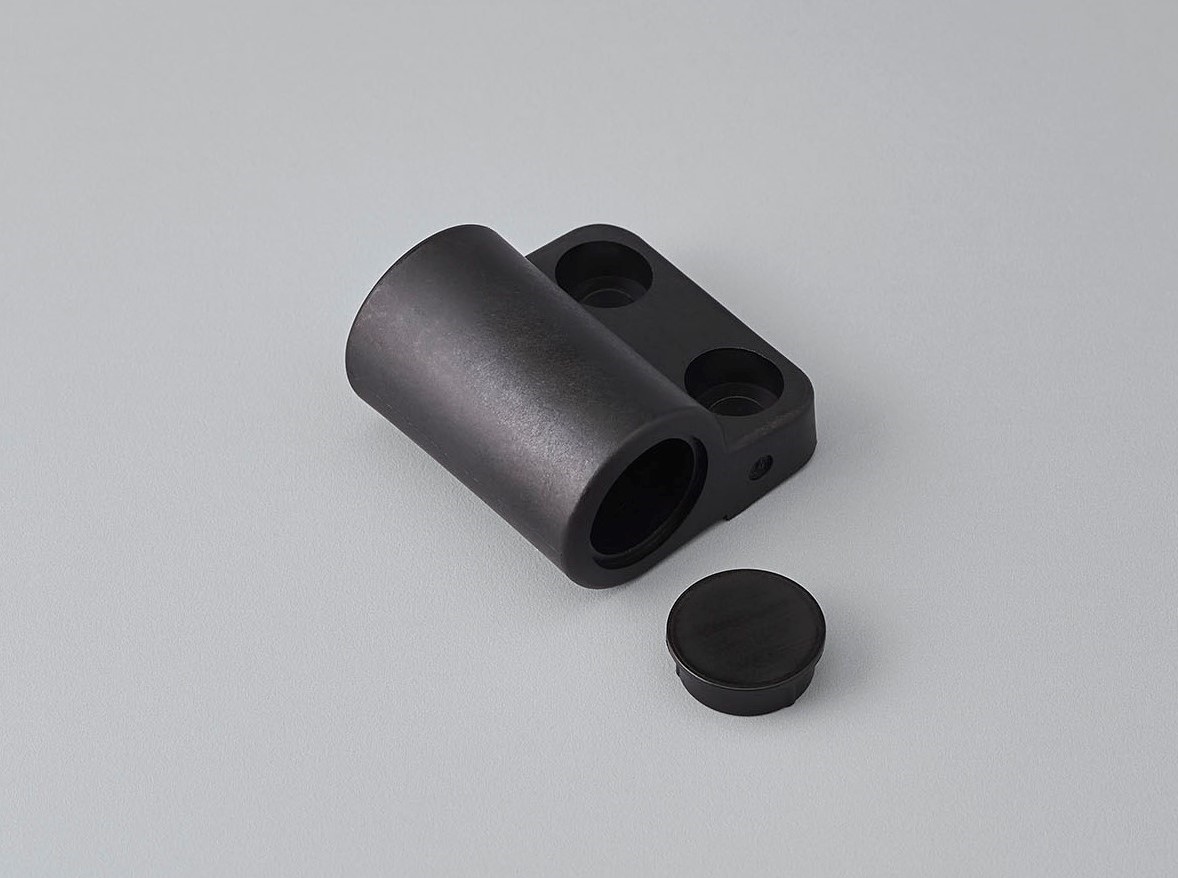

TD27/28 Bracket

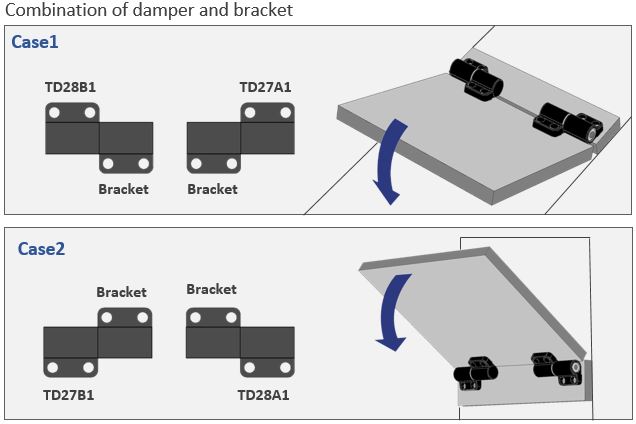

* Case2 / Damper shaft delivery position needs to be changed from closed position to open position

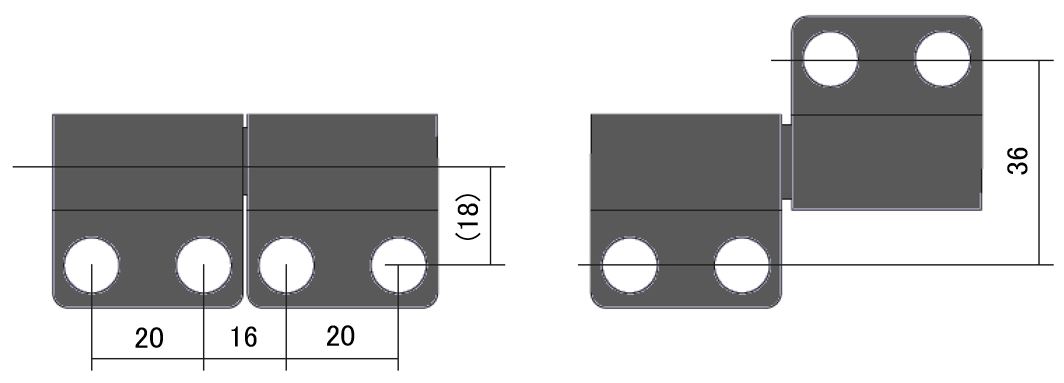

Mounting hinge mounting dimensions

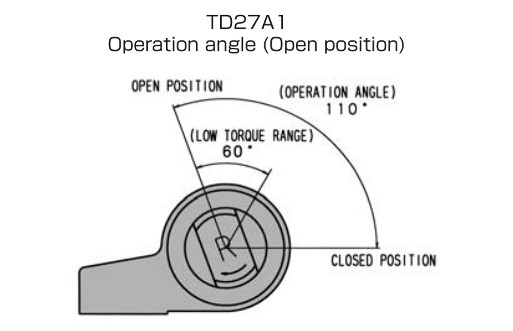

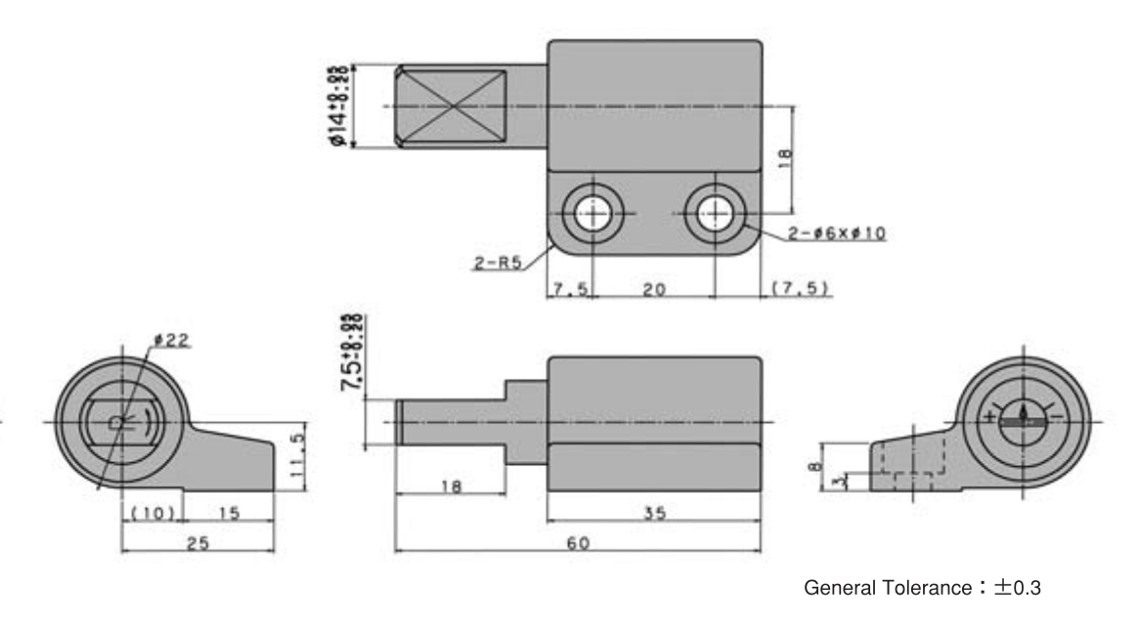

The above drawing shows operation angle of TD27A1 (CW) series dampers. Operation angle for TD27B1 (CCW) series dampers are symmetrical to the vertical line. Shaft position at the time of shipment is closed position.

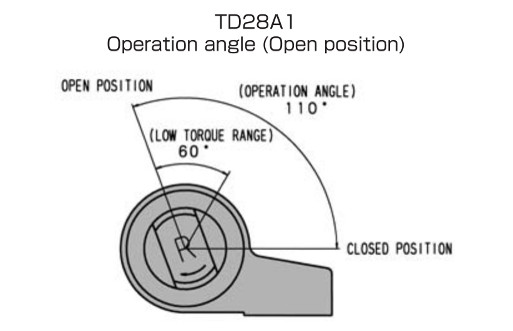

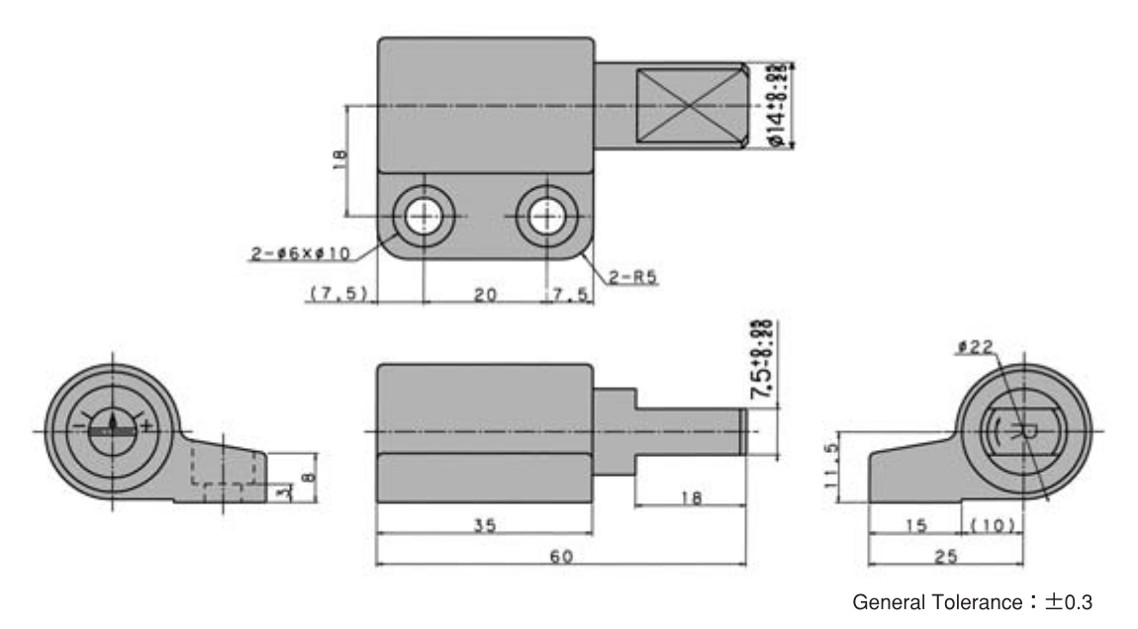

The above drawing shows operation angle of TD28A1 (CW) series dampers. Operation angle for TD28B1 (CCW) series dampers are symmetrical to the vertical line. Shaft position at the time of shipment is closed position.

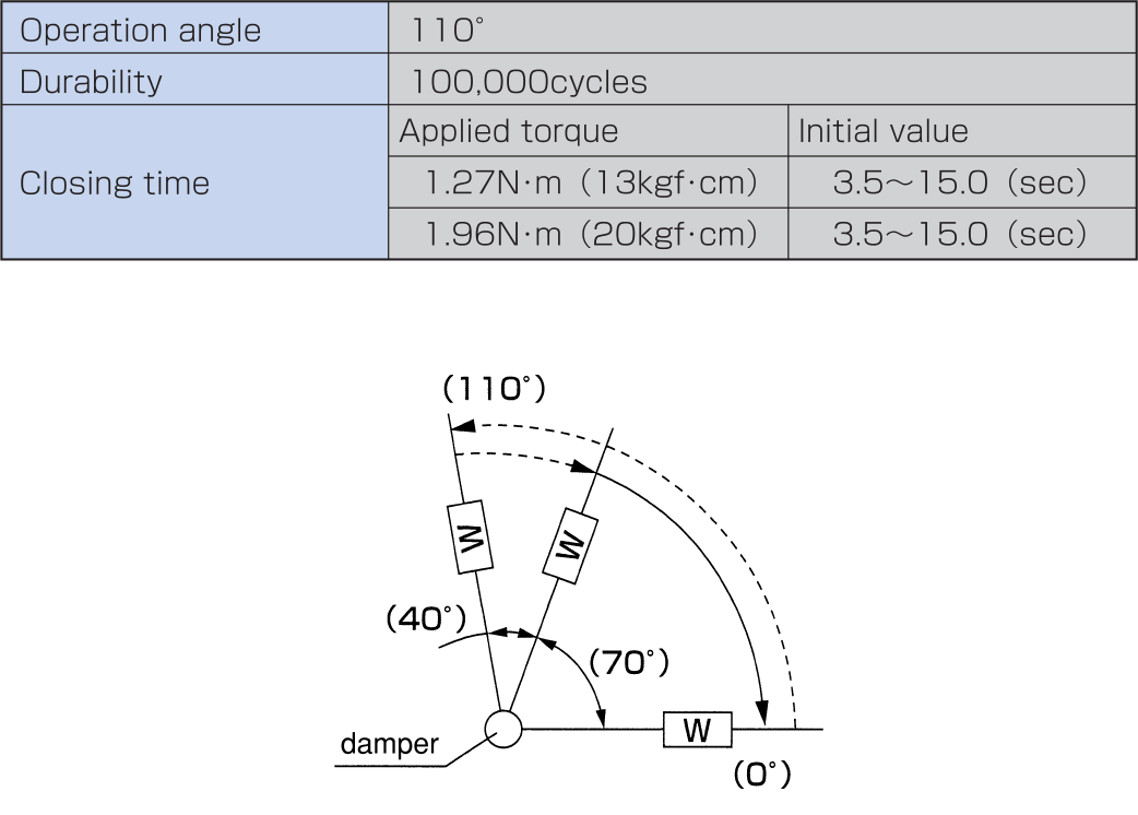

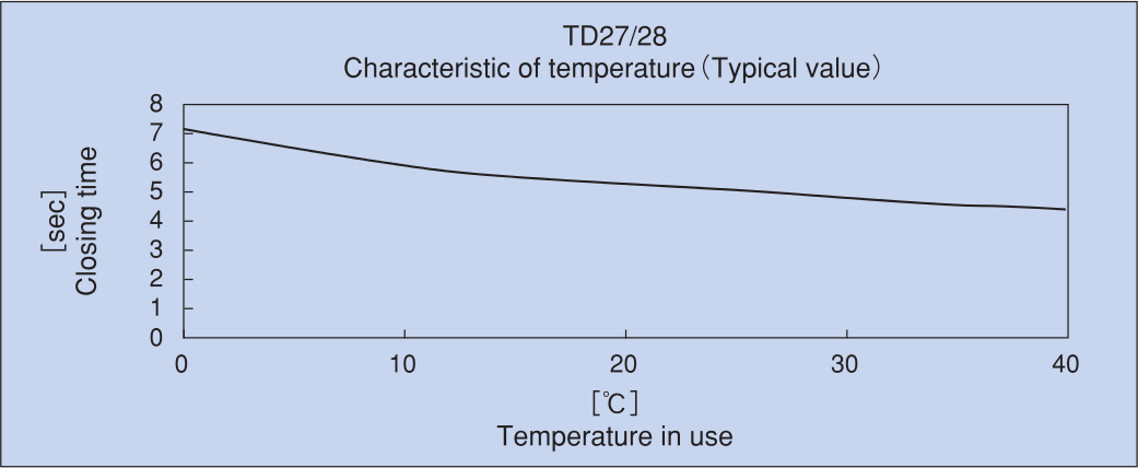

TEST CONDITION
①Setting-up time: 15 sec/cycle
②Load torque:
- 1.27 N･m (13kgf･cm)
- 1.96 N･m (20kgf･cm)
③Temperature: 23℃±2℃
④Angle for measuring the closing time: 70° → 0°
⑤Radial force: nothing
⑥Closing time after durability test: 1.5 sec or more
After the damper is stabilized at room temperature for 1 hour or more, the closing time is measured using TOK in-house device.
